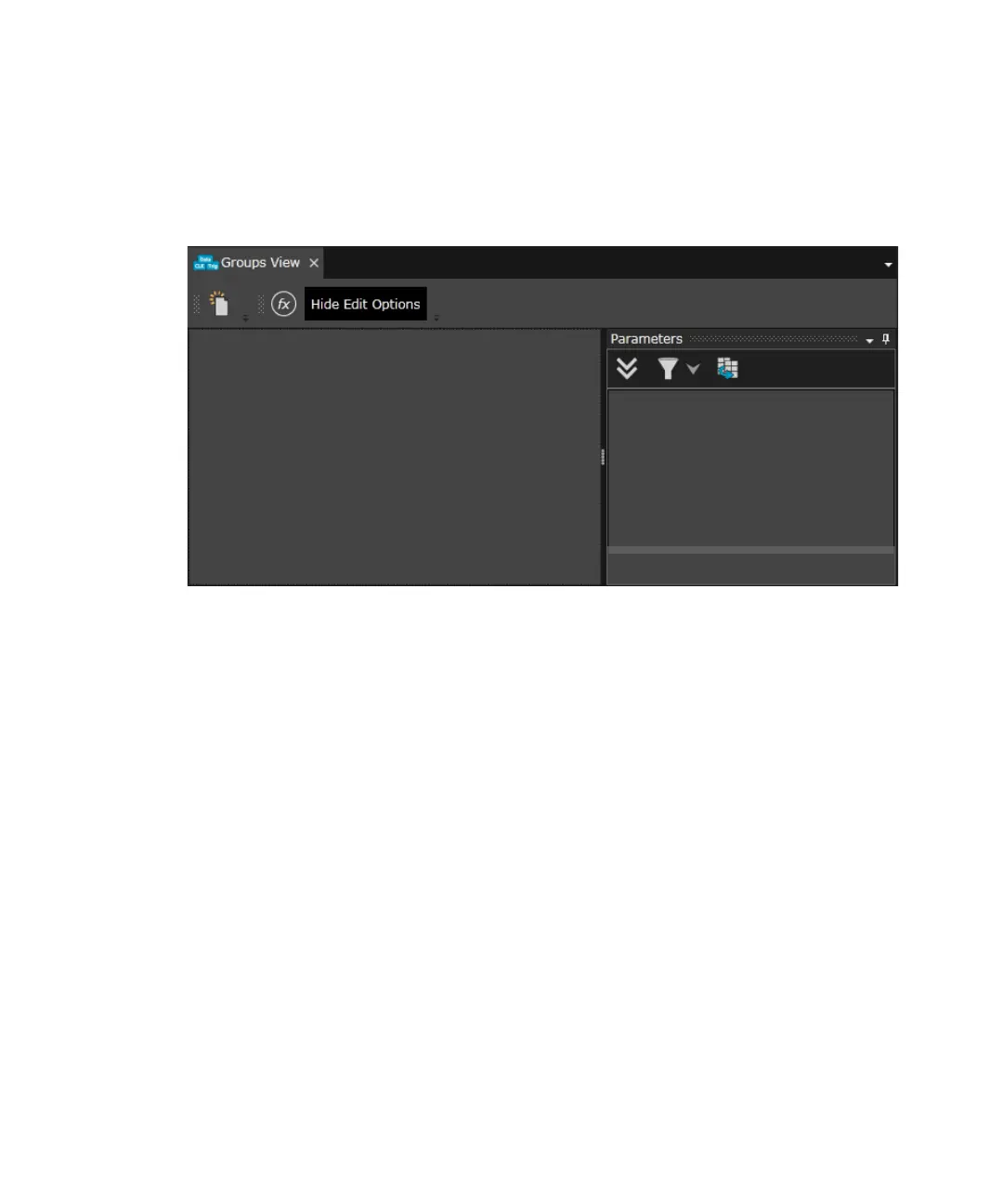

• Groups View - Opens the Group View user interface as shown in the
following figure:
The Group View allows you to create a group of ports and re-program
their properties. For details, refer to Group View on page 185.
• Ctrl In/ Ctrl Out - Opens the Module View with the Ctrl In/Ctrl Out
ports selected and the corresponding parameters are reflected in the
Properties window.
• Sys In/Out A/B - Opens the Module View with the Sys In/Out ports
selected and the corresponding parameters are reflected in the
properties window.
Clock Menu
The Clock menu provides the following selections:
• Clock Generator - Allows you to configure Clk Gen port.
• Clock Output - Allows you to configure Clk Out port.
Once you make a selection, the Module View appears with the Clk
Gen/Clk Out ports selected and the corresponding parameters are
reflected in the Properties window.
