94 Keysight M8000 Series of BER Test Solutions User Guide
3 Quick Tour with M8070A User Interface

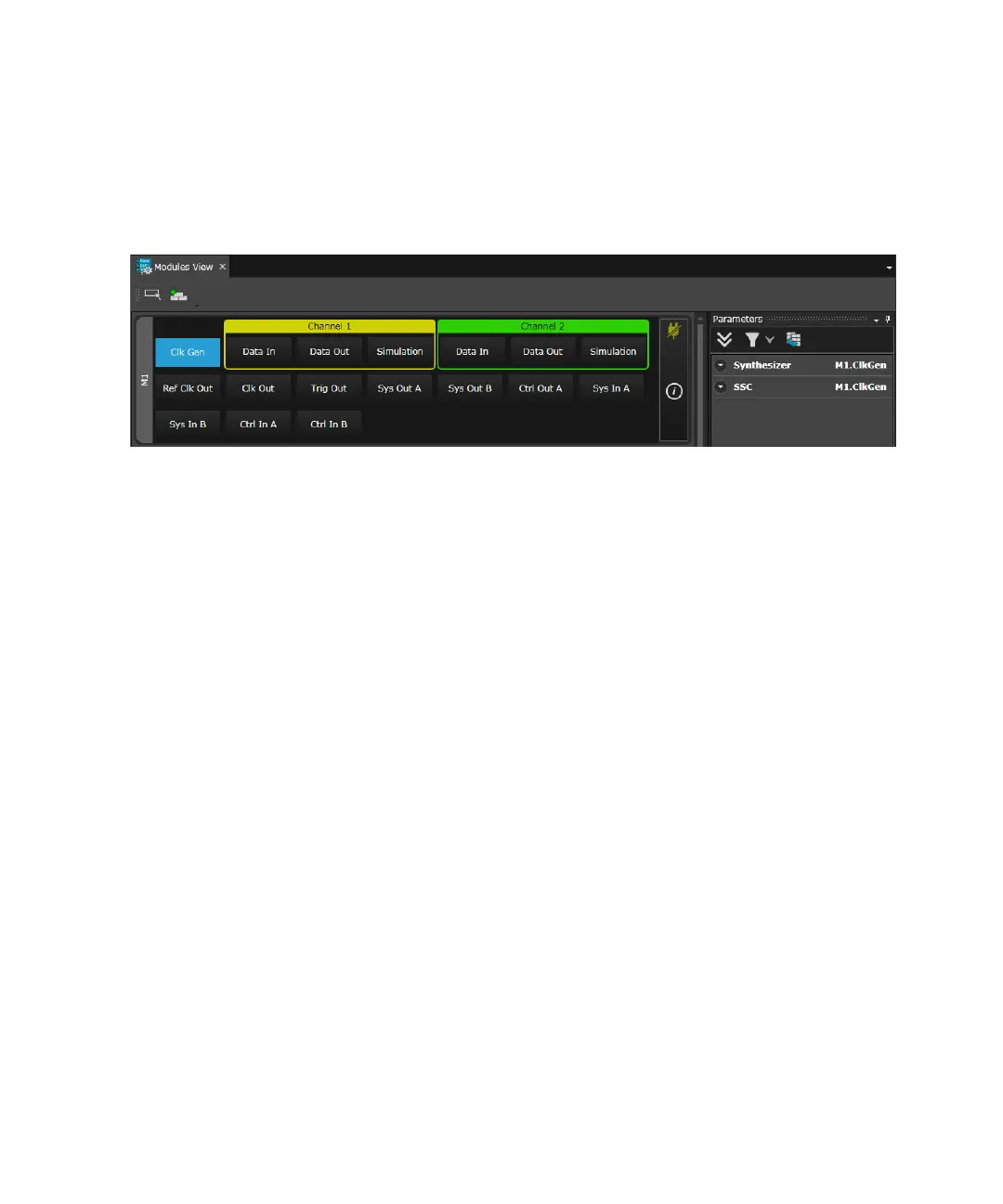

The following figure shows the Module View with the Clk Gen port
selected:
The generator's output ports are used to supply a clock signal and trigger
for another device (for example, analyzer), and an arbitrary data signal for
testing your device. For details, refer to Setting up Generator on page 249.
To change bit rate, go to the Properties window and then click on the
Synthesizer function block.
Generator Menu
The Generator menu provides the following selections:
• Data Output - Allows you to configure Data Out port.
• Trigger Out - Allows you to configure Trig Out port.
Once you make a selection, the Module View shows the Data Out/Trig
Out ports selected and the corresponding parameters are reflected in the
Properties window.
