Quick Tour with M8070A User Interface 3

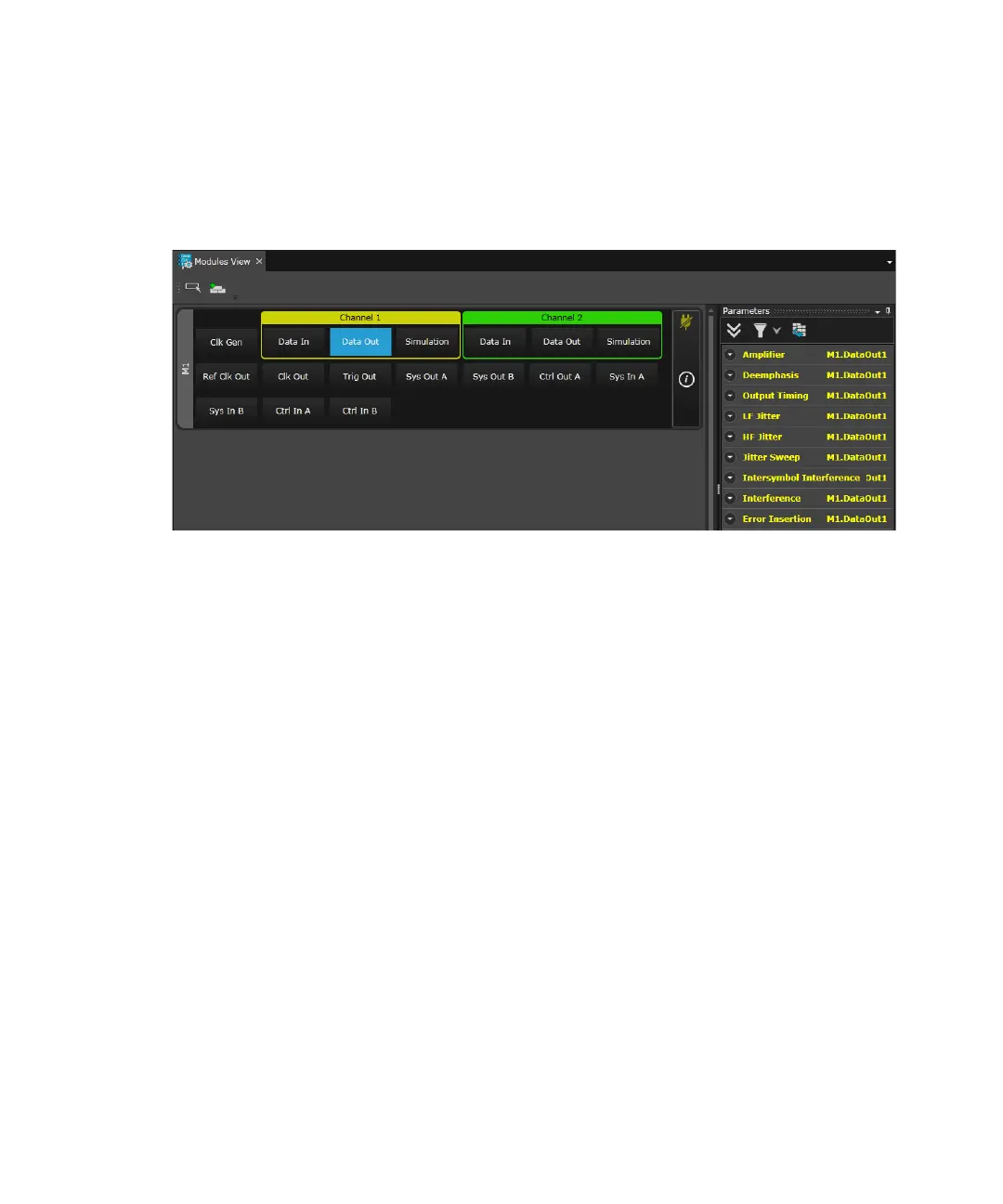

The following figure shows the Module View with the Data Out port
selected:
The generator's ports are used to set the clock frequency and the output
signal with respect to jitter, error insertion and signal output. For details,
refer to Setting up Generator on page 249.
To change amplitude/offset, go to Properties window and then click the
Amplifier function block.
Analyzer Menu
The Analyzer menu provides the following selections:
• Data Input - Allows you to configure Data In port.
Once you make a selection, the Module View shows the Data In ports
selected and the corresponding parameters are reflected in the Properties
window.
