3 CALCulate Subsystem
204 Keysight N8262A Programming Guide
CALCulate[1]|2|3|4:LIMit:LOWer[:DATA] <numeric_value>
This command enters a value for the lower test limit for the specified window/
measurement used in the CALCulate[1]|2|3|4:LIMit:FAIL? test. The units used
are dependent on the current setting of UNIT:POWer and
CALCulate:RELative:STATe as shown in Table 3-1. When the measured value is
less than the value specified in CALCulate[1]|2|3|4:LIMit:LOWer[:DATA],
CALCulate[1]|2|3|4:LIMit:FAIL? reports a fail. When the measured value is
greater than or equal to the limit, a fail is not reported.

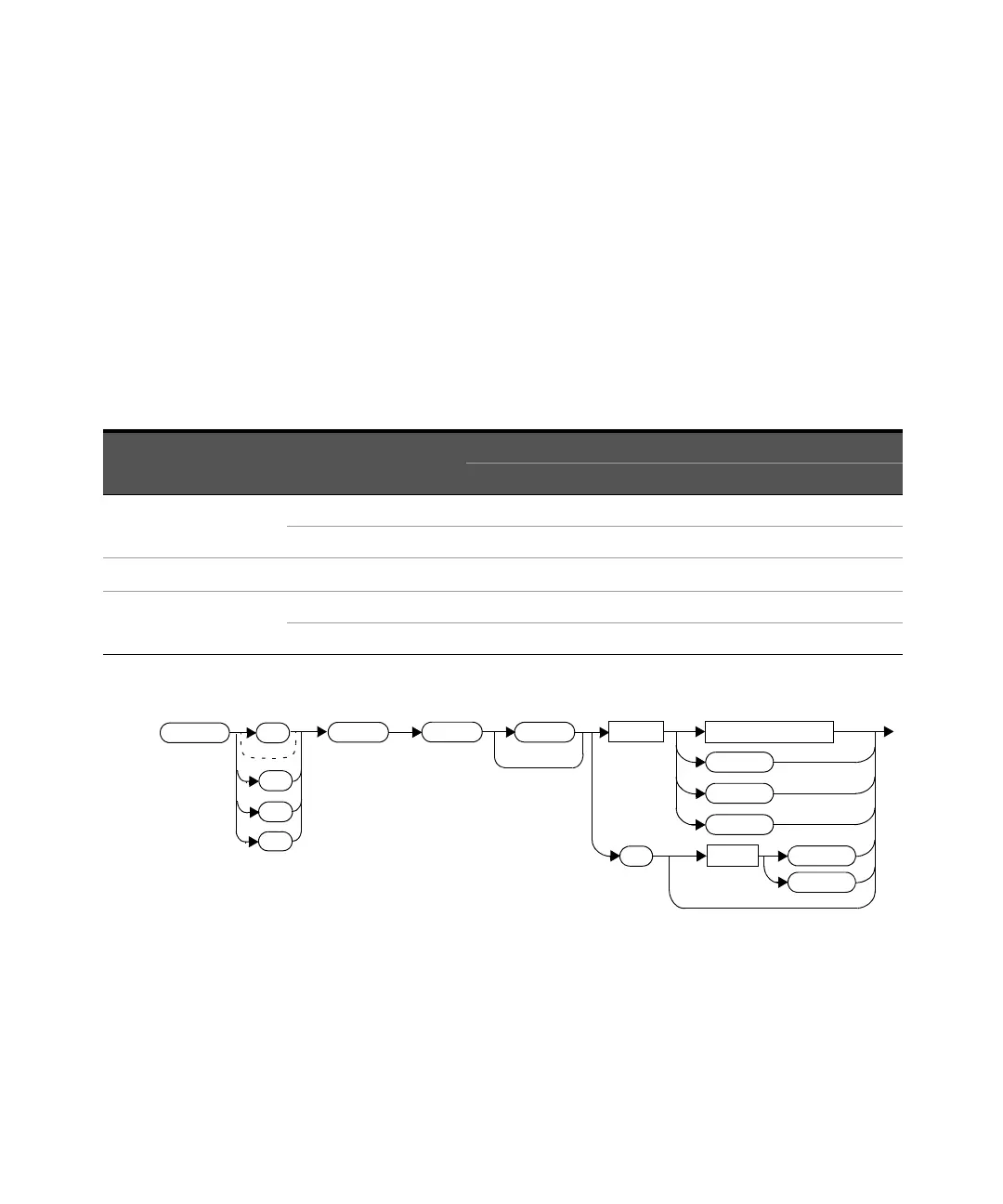

Syntax
Table 3-1 Measurement units
Measurement Mode Measurement Type CALC:REL:STAT OFF CALC:REL:STAT ON
Linear Log Linear Log
Single Channel
Avg, Pk Watt dBm % dB
Pk–Avg % dB % dB
Ratio
Avg, Pk, Pk–Avg % dB % dB
Difference
Avg, Pk Watt dBm % dB
Pk–Avg % dB % dB
Space
?
numeric_value
DEF
MIN
MAX
MIN
MAX
Space
:LIM
:LOW
:DATA
CALC
1
2
3
4
