Installation
BOOKLET FINISHER INSTALLATION (B546)
SM 1-57 B079/B082

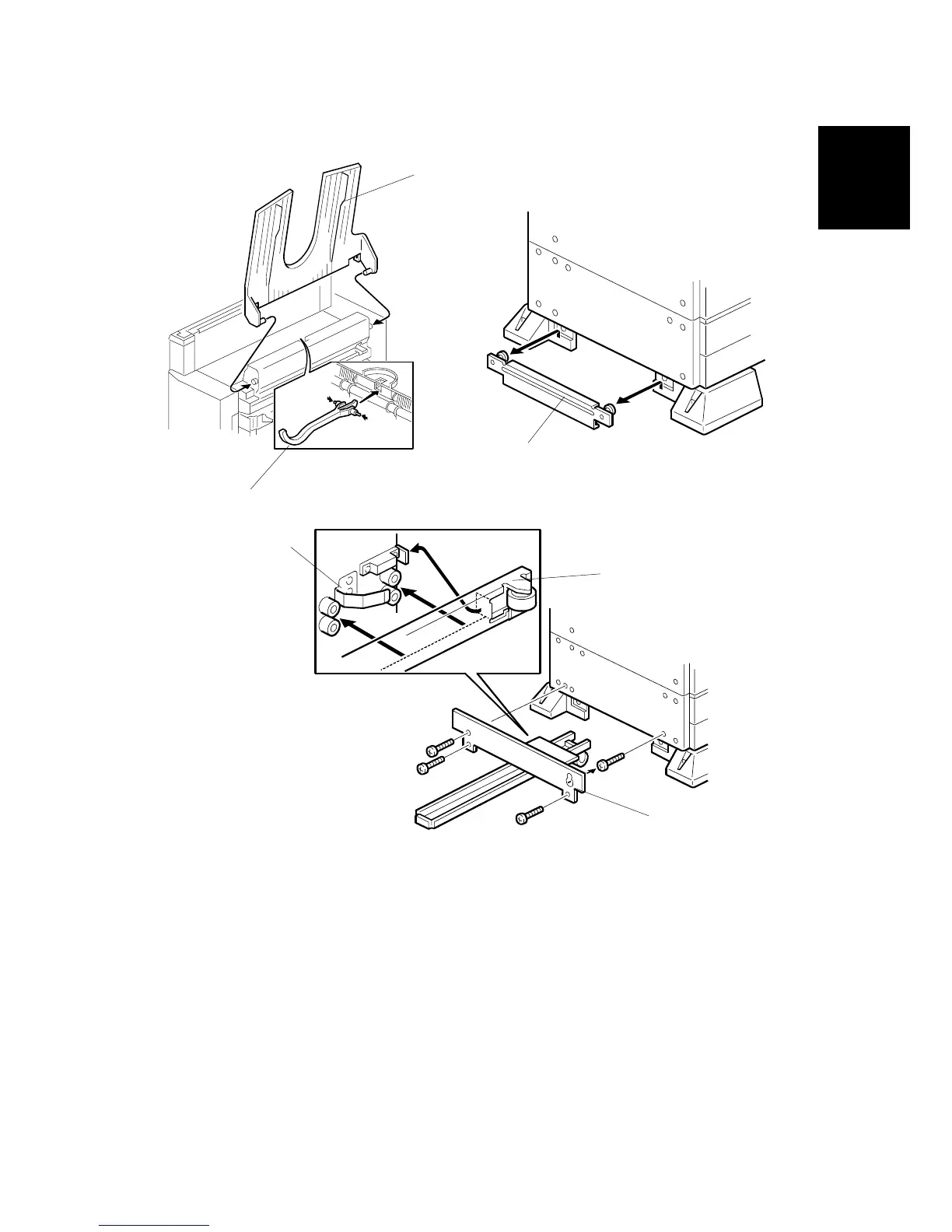

12. Install the upper tray [A] (2 pins).
13. Attach the sensor feeler [B] (2 pins).
14. Remove the stand bracket [C].
15. Attach the rail [D] to the rail bracket [E] as shown.
16. Install the rail bracket [F] on the left lower cover of the copier ( x 4).
B546I108.WMF
B546I921.WMF
B546I801.WMF
[A]
[B]
[D]
[E]
[F]
[C]
To Next Page
