Dehumidification Heater (main unit)
D0CA/D0C9/D0C8/D0CB 2-114 SM
• Turn OFF the main power and unplug the power cord from the wall socket. If the main
power is not turned OFF before installing, an electric shock or malfunction might occur.
• Do the following procedure to prevent the harnesses from being damaged.
• Check that harnesses are not damaged or pinched after installation.

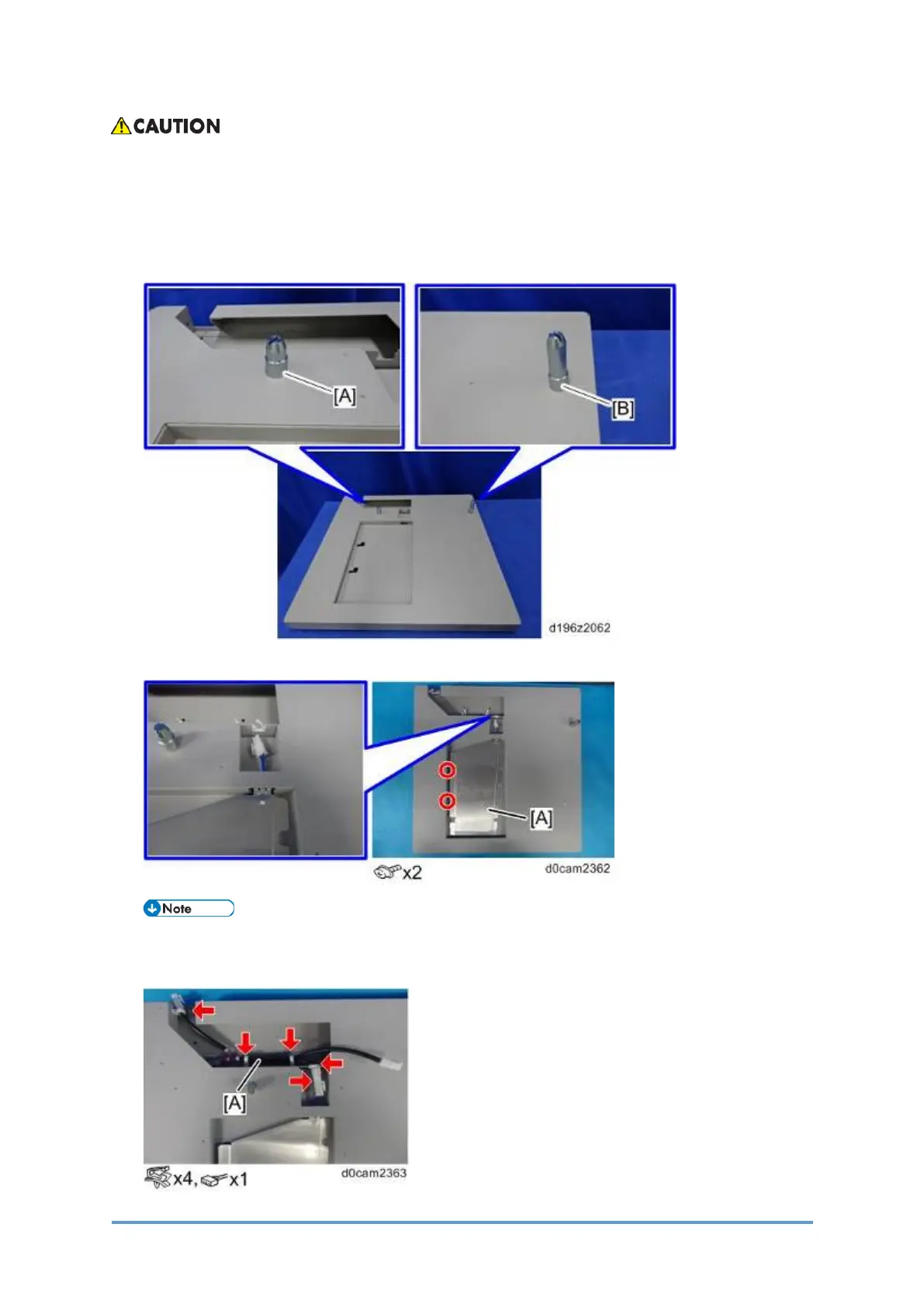

1. Attach the two locating pins [A] [B] on the table.
2. Attach the heater bracket [A].
• Pass the connector through the hole in the table.
3. Connect the heater harness [A] to the heater and route it as shown below.
