Image Adjustment
SM 4-259 D0CA/D0C9/D0C8/D0CB
&
Adjustment
- Adjustment Procedure -

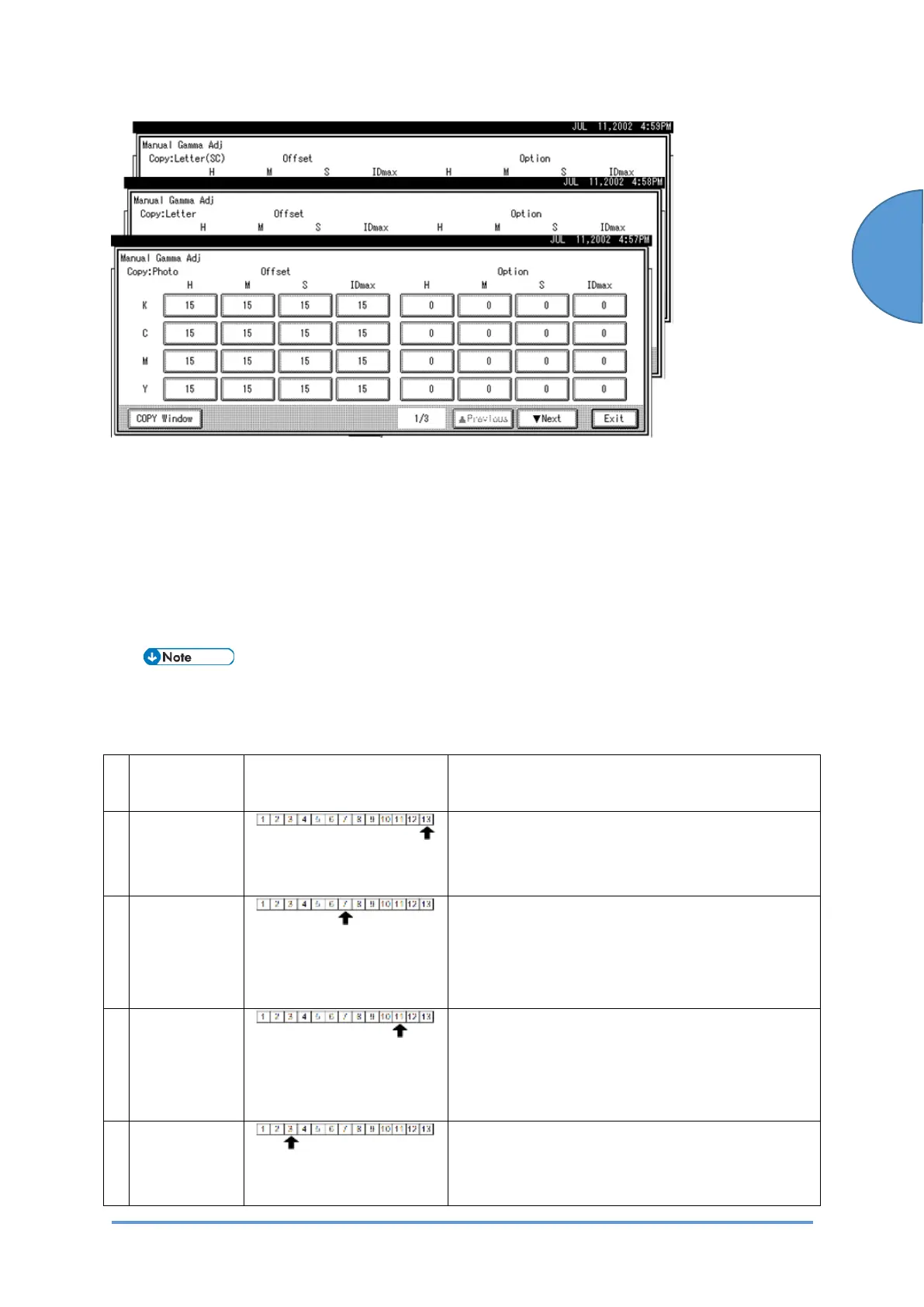

1. Copy the C-5Y chart in the mode that you want to adjust.
2. Enter the SP mode.
3. Select "System S P. "
4. Select SP4-918-009.
5. Adjust the offset values until the copy quality conforms to the standard (see the table
below).
• 1. Never change the "Option" value (the default value is "0").
• 2. Adjust the density in this order: "ID Max", "Middle", "Shadow", "Highlight".
- Photo Mode, Full Color -
Item to
Adjust
Level on the C-5Y chart Adjustment Standard
1 ID max:
(K, C, M, and
Y)
Adjust the offset value so that the density of level
13 matches that of level 13 on the C-5Y chart.
2 Middle
(Middle ID)
(K, C, M, and
Y)
Adjust the offset value so that the density of level
7 matches that of level 7 on the C-5Y chart.
3 Shadow
(High ID)
(K, C, M, and
Y)
Adjust the offset value so that the density of level
11 matches that of level 11 on the C-5Y chart.
4 Highlight
(Low ID)
(K, C, M, and
Adjust the offset value so that dirty background
does not show on the copy and the density of
level 3 is slightly lighter than that of level 3 on the
To Next Page
