Ricoh IM C300

Internal Finisher
D0CA/D0C9/D0C8/D0CB 7-36 SM

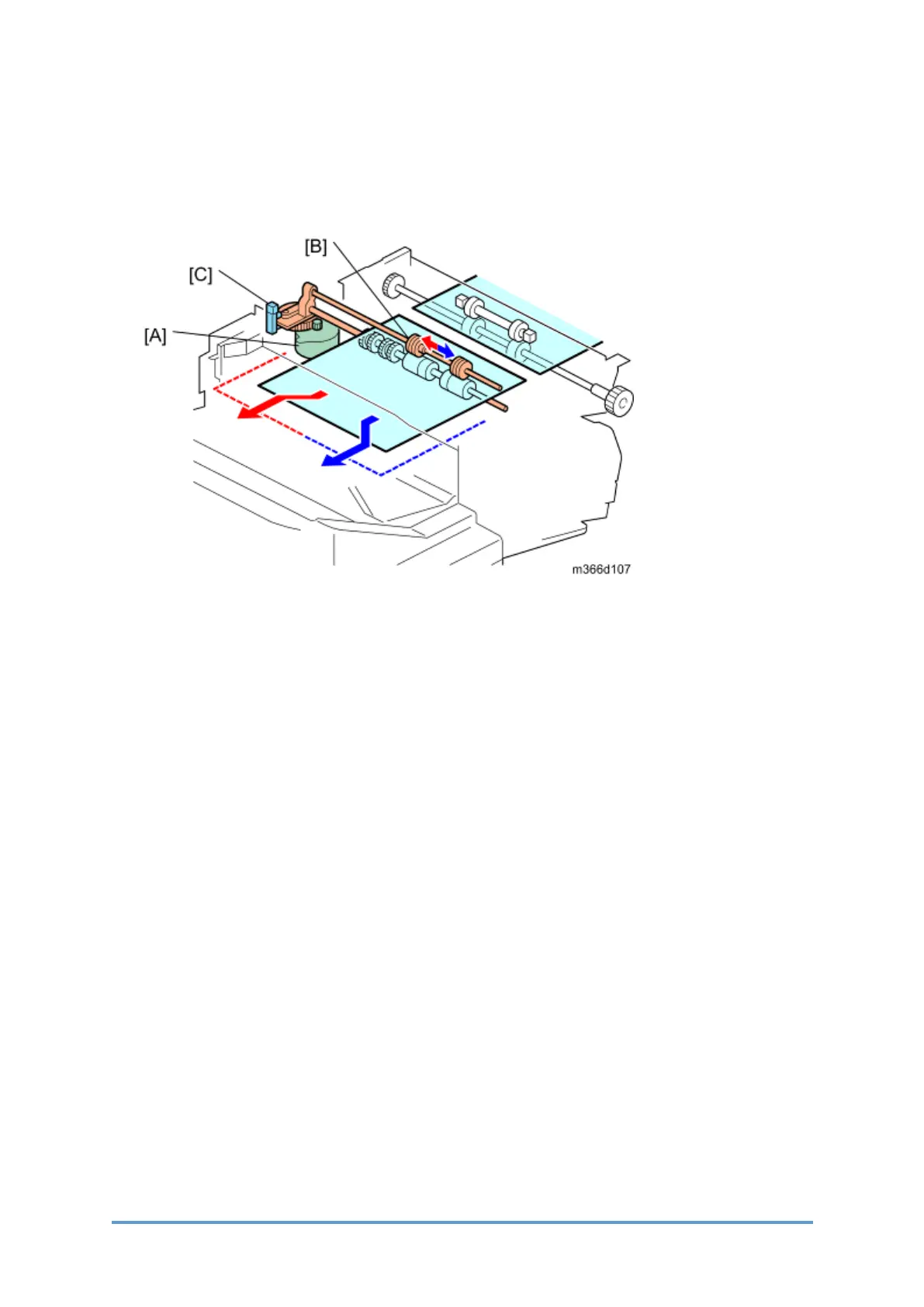

The finisher separates each stack by shifting alternately to the left and right.
• Shift roller motor (M19) [A] moves the shift roller [B] from side to side.
• Shift roller HP sensor (S37) [C] detects whether or not the shift roller [B] is at the home
position again after jogging.
