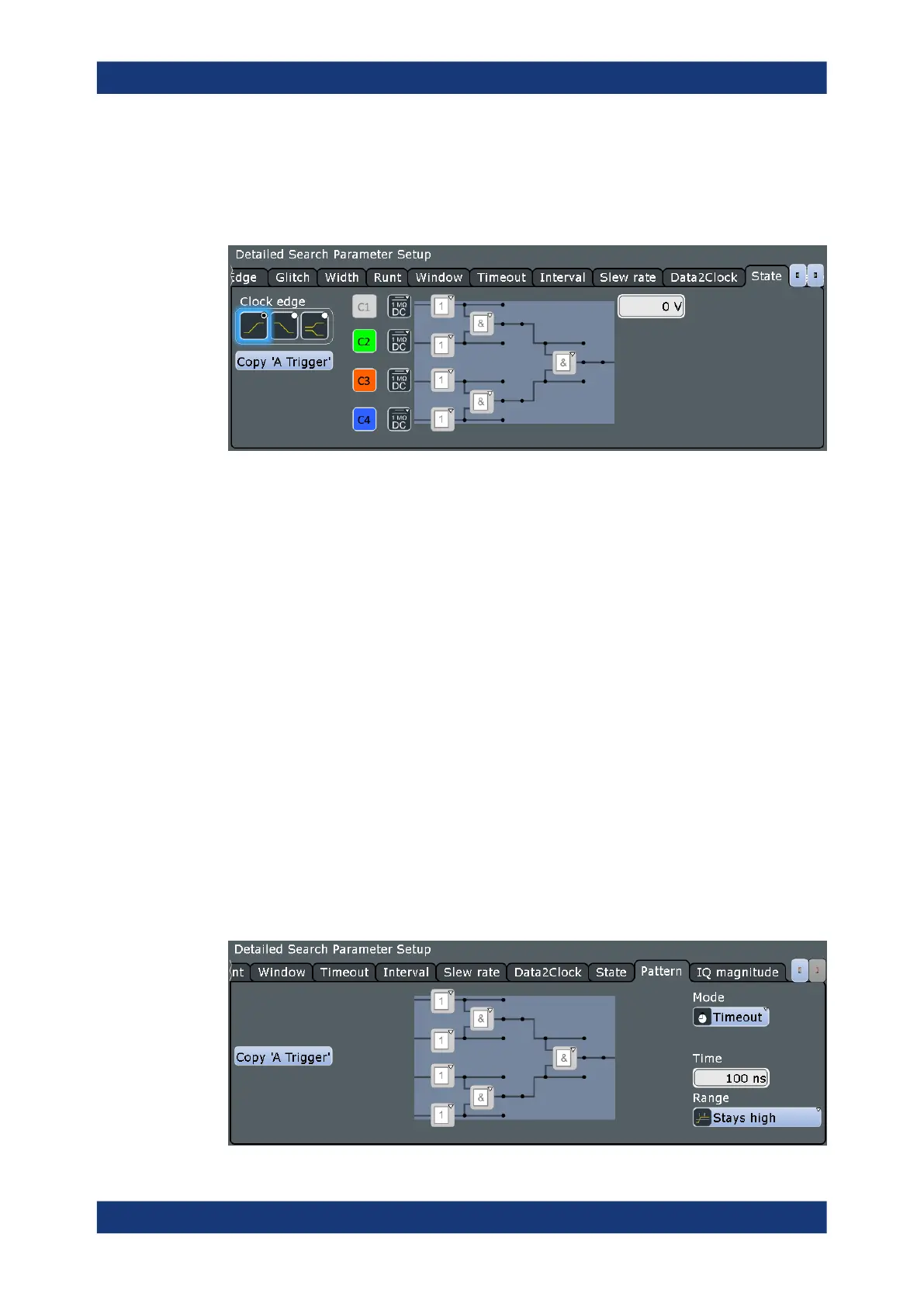

11.2.2.10 State
The state search is a qualified edge search. The state search is only available for ana-
log channel sources (Ch1 to Ch4).
Clock source, Clock edge
Define the clock settings. The clock signal is the waveform to be searched.
Remote command:
SEARch:TRIGger:STATe:CSOurce on page 1505
SEARch:TRIGger:STATe:CEDGe on page 1505
SEARch:TRIGger:STATe:CLEVel on page 1505
State pattern
State settings are the same as for the state trigger.
See also "Pattern" on page 230.
Remote command:
SEARch:TRIGger:STATe:A[:ENABle] on page 1506
SEARch:TRIGger:STATe:A:LOGic on page 1506
SEARch:TRIGger:STATe:AB:LOGic on page 1507
SEARch:TRIGger:STATe:ABCD:LOGic on page 1507
11.2.2.11 Pattern
The pattern search combines a logical combination of the input channels with a timing
condition. The pattern search is only available for analog channel sources (Ch1 to
Ch4).
Search setup
