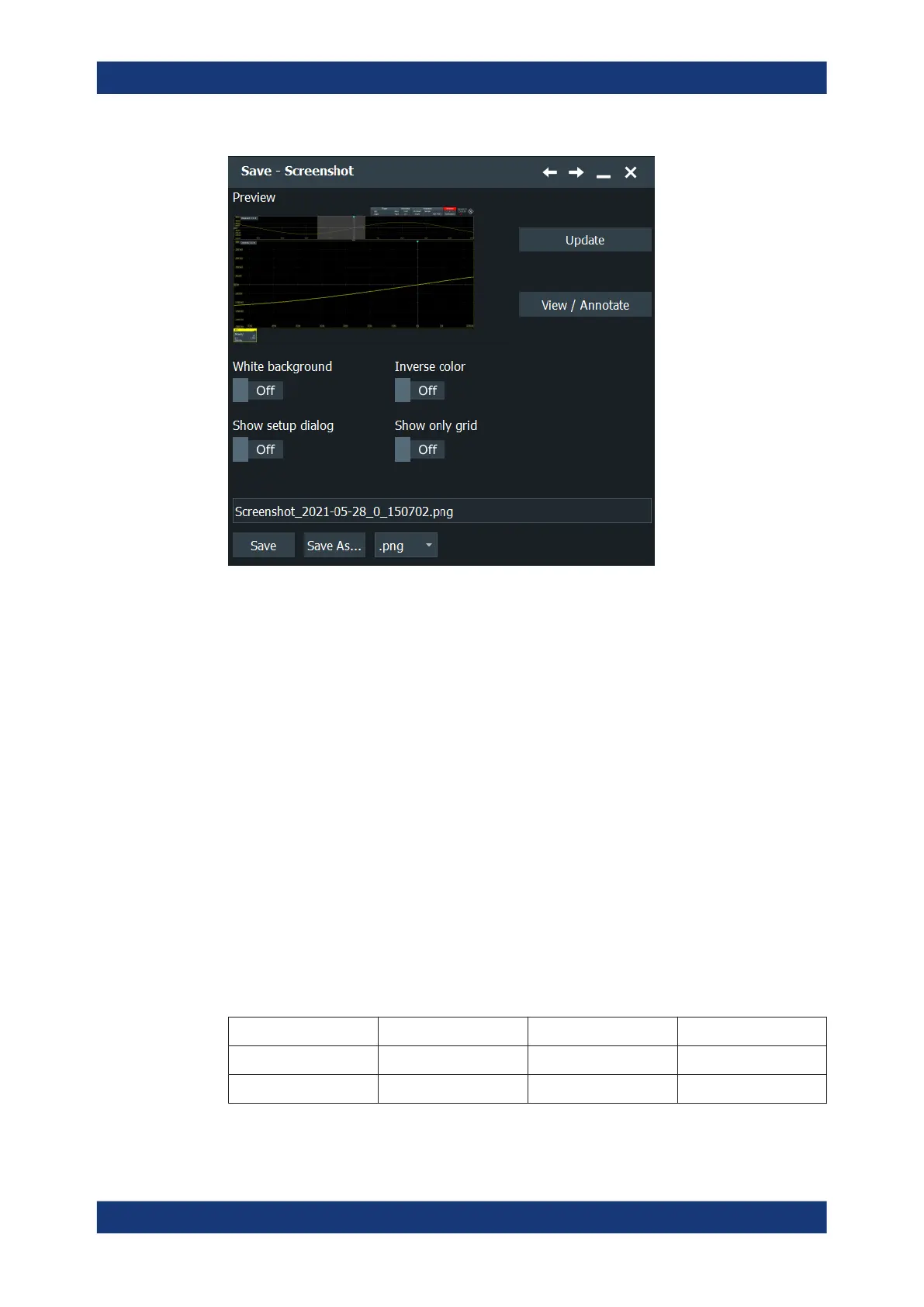

Preview
Shows a preview of the screenshot. The image is created when the dialog box opens.
Update
Updates the preview of the screenshot with the current display view, e.g. after changes
to the settings have been made, or an additional channel has been activated.
White background
Inverts the background color. So you can picture waveforms with normal waveform col-
ors on white background.
If both "White background" and Inverse color are enabled, the instrument inverts the
background twice, and it appears black.
"White background" "Inverse color" Background Waveform and results
On Off White Screen colors
Off On White Inverted colors
