SUPPLEMENT S2
Chapter 3 – Airplane General Description
Page 7
2nd Edition – Rev 0

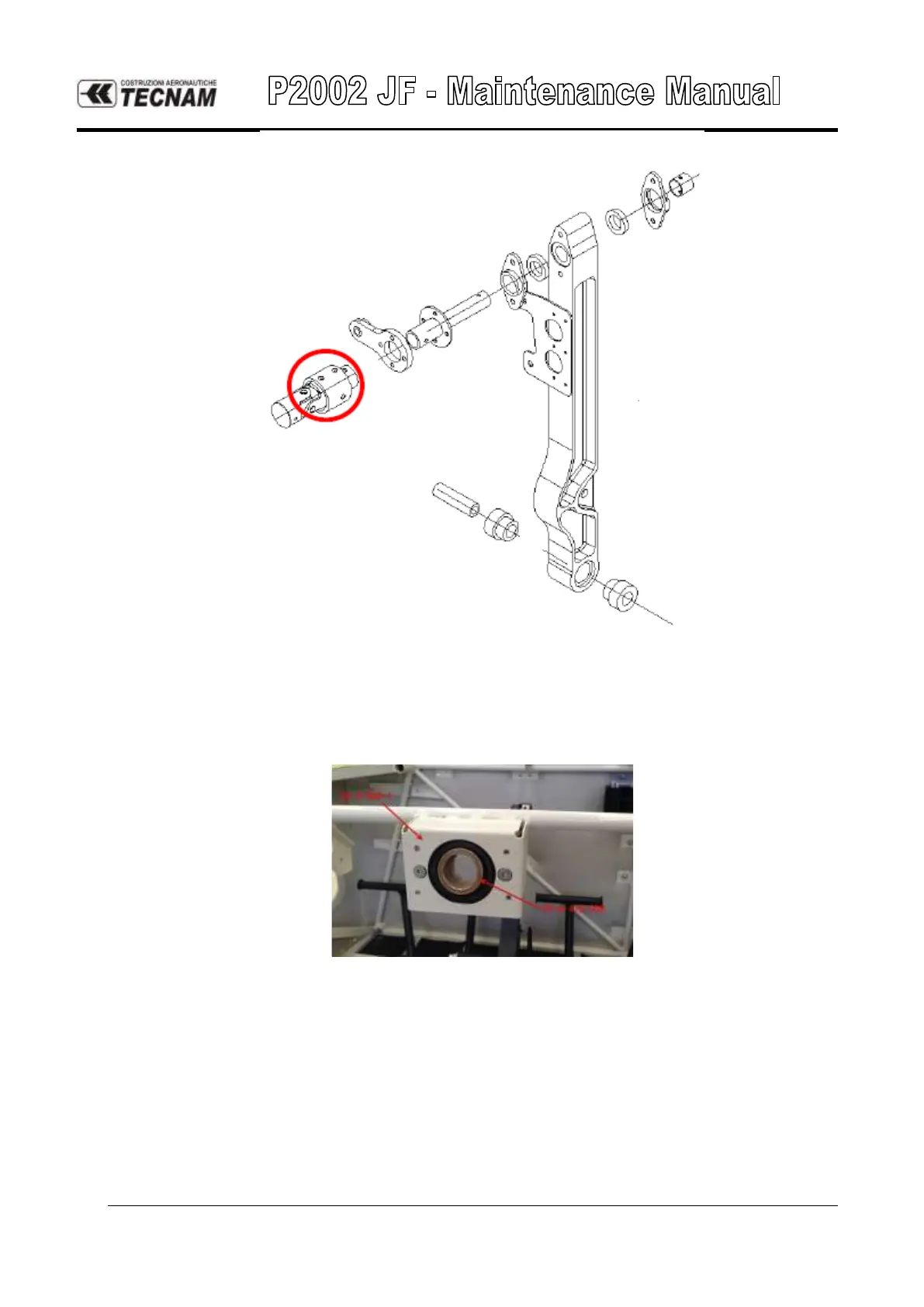

FIGURE 3-6 CONTROL COLUMN / MECHANICAL INTERFACE
In the back of the cockpit panel, a steel plate is welded on the cabin truss and allows
the installation of the ball bearing joint via two anchor nuts and MS20004 bolts
(Figure A-8).
FIGURE 3-7 REINFORCEMENT AND ROTARY JOINT
