SUPPLEMENT S2
Chapter 3 – Airplane General Description
In order to allow the disassembly of the hand control group, the bearing assy 22-5-
415-000 is installed outside of instrument panel; on the steel plate two anchor nuts
are installed and two MS20004 (6,35mm diameter) bolts are used to allow an easy
and fast installation and removal.

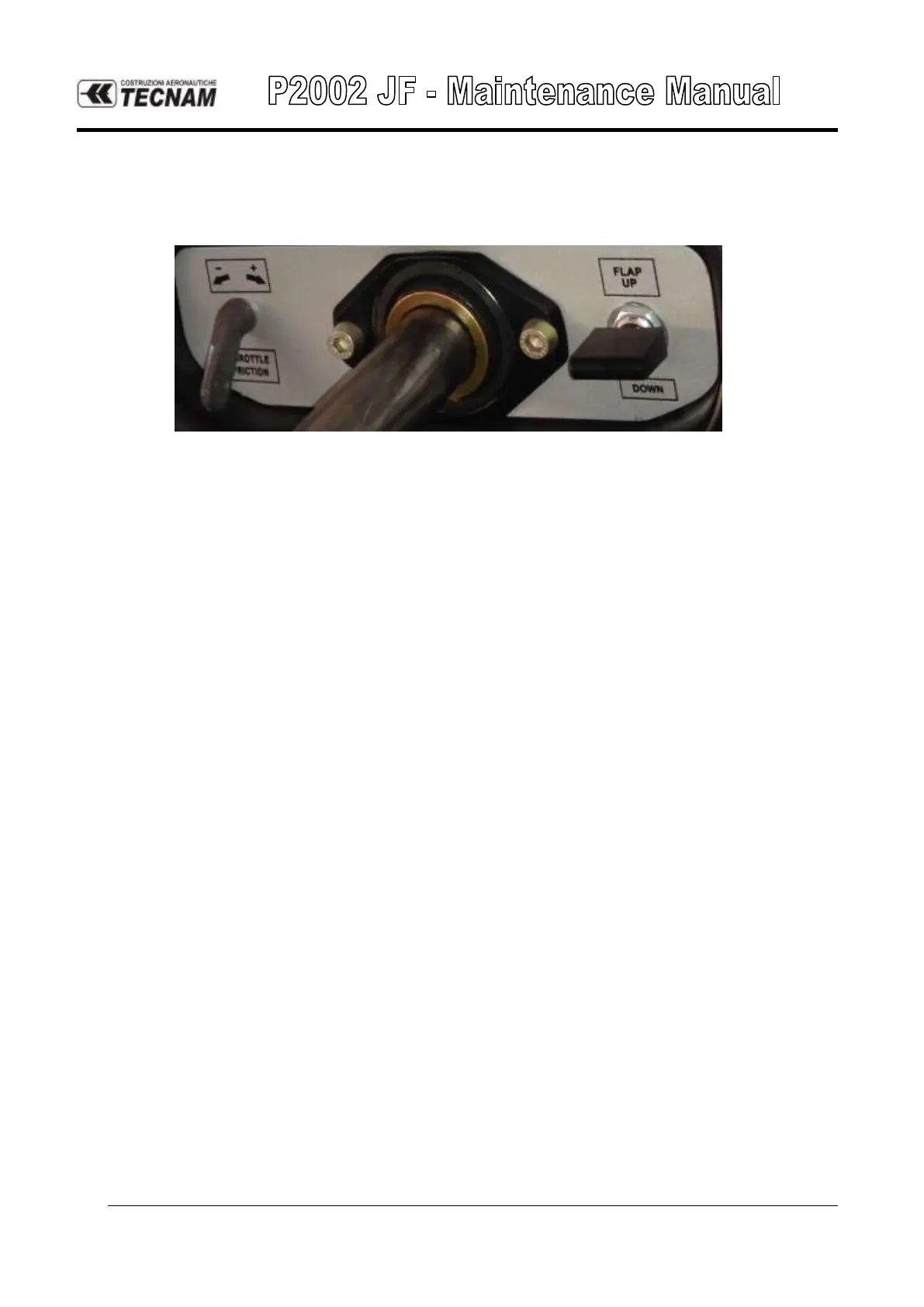

FIGURE 3-8
The terminal part of the control handle (p/n 22-5-420-000) must be removed
from the aircraft without removing the remaining parts when the kit is not to be
installed don the aircraft.
