Step 3
Place the deep-front panel close to the shelf so that the shelf notches and the deep-front panel retention features
are in line (see the figure below).

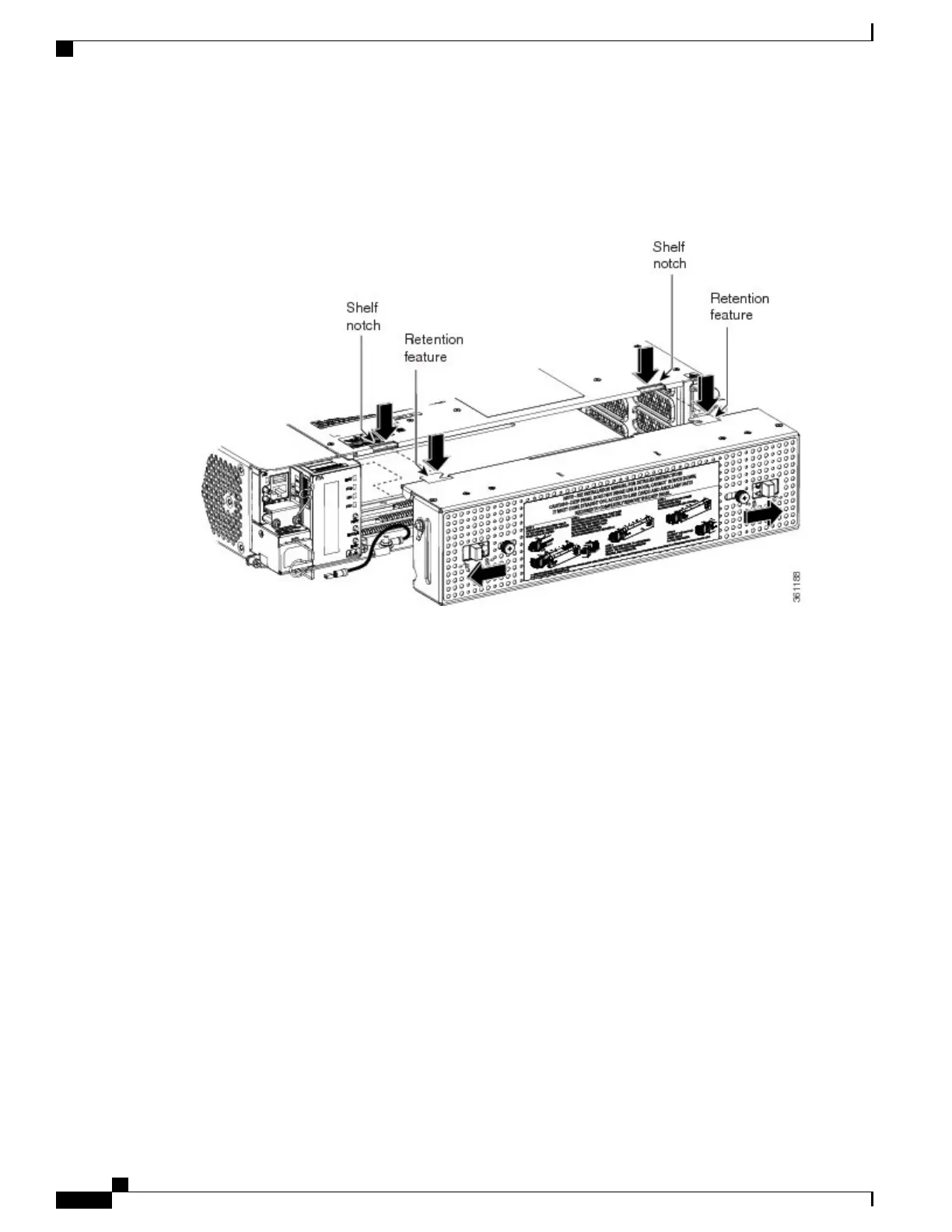

Figure 66: Deep-Front Panel and Shelf in line
Step 4
Align the deep-front panel with the shelf by performing the following sub-steps at the same time:
a) Align the right and left retention features of the deep-front panel with the right and left notches present
on the top of the shelf (see the figure above).
Cisco NCS 2000 Series Hardware Installation Guide
118
Installing the Cisco NCS 2002 Door and Other Modules
NTP-L40 Installing the Deep-Front Panel of the NCS 2002 Shelf
