b)
Align
the
deep-front
panel
pins
present
at
the
bottom
of
the
panel
with
the
shelf
hinges
(see
the
figure
below).

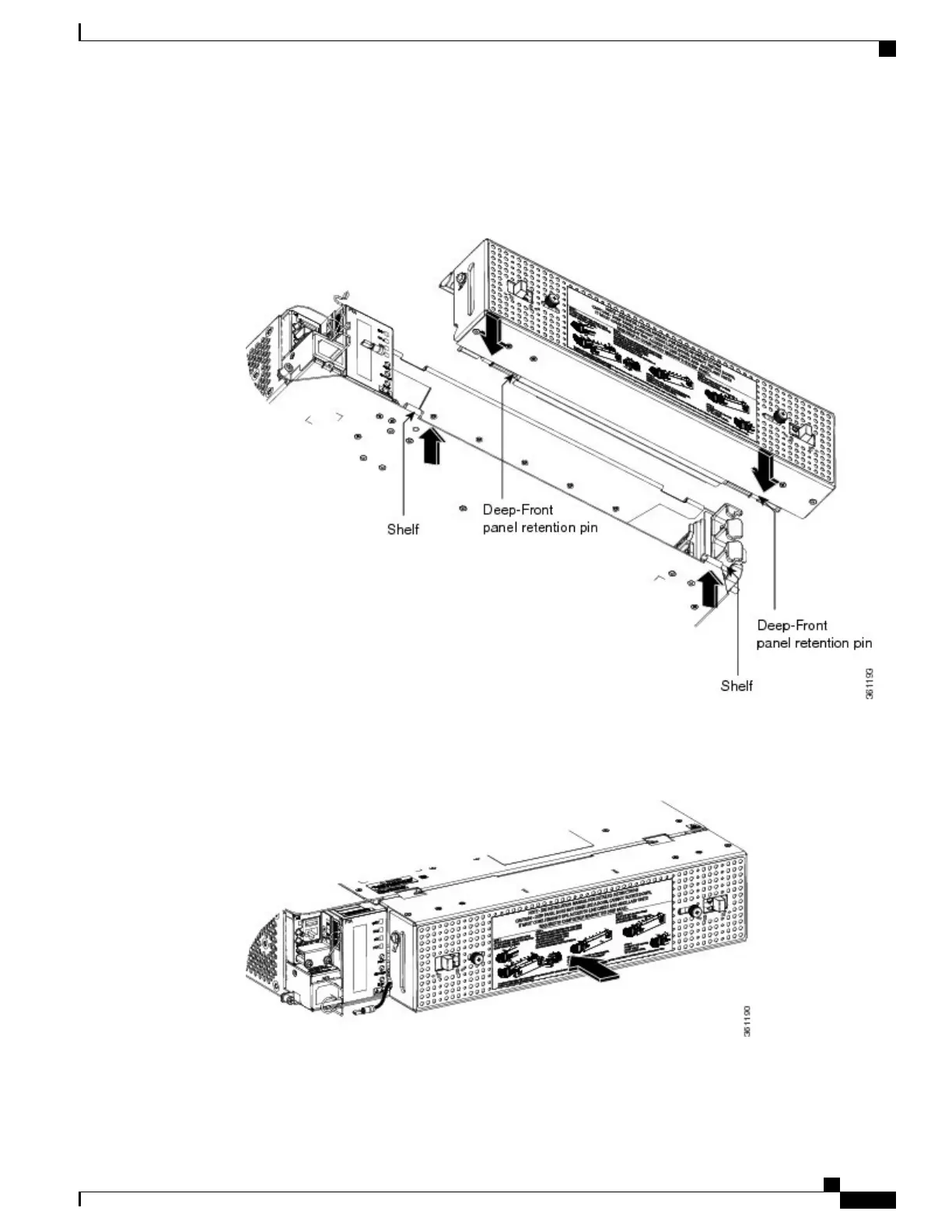

Figure 67: Align the Deep-Front Panel and Shelf
The
figure
below
shows
the
deep-front
panel
aligned
with
the
shelf.
Figure 68: Engage the Deep-Front Panel and Shelf
Cisco NCS 2000 Series Hardware Installation Guide
119
Installing the Cisco NCS 2002 Door and Other Modules
NTP-L40 Installing the Deep-Front Panel of the NCS 2002 Shelf
146
148
