Procedure
Step 1
Install the ANSI 23-inch adapter plates on the horizontal air plenum.
Step 2
Align the screws to fix the adapter plates to the shelf. Insert the screws and tighten them to a torque value of
11.5 in-lb (1.3 N-m).

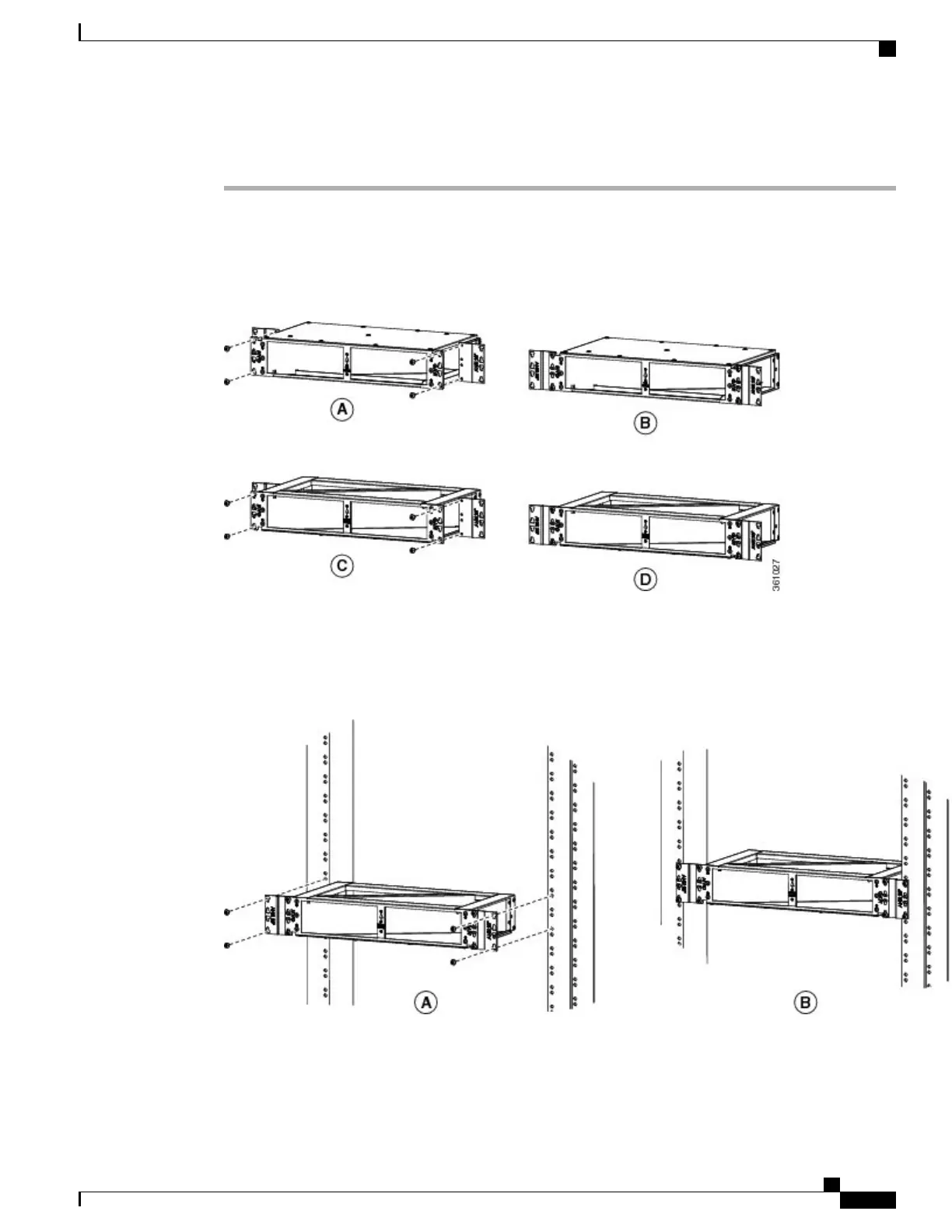

Figure 91: Installing the adapter plates on the horizontal air plenum
Step 3
Place the horizontal air plenum below the shelf slot in the ANSI 23-inch cabinet or rack.
Step 4
Insert the wing head screws provided with the kit, and tighten to a torque value of 11.5 in-lb (1.3 N-m).
Figure 92: Installing the bottom horizontal air plenum in the ANSI 23-inch configuration
Step 5
Install the vertical air plenum to the left of the horizontal air plenum:
a) Insert the vertical air plenum in the free space between the horizontal air plenum and cabinet.
Cisco NCS 2000 Series Hardware Installation Guide
151
Installing the Air Flow Regulator
DLP-L66 Installing Air Plenum in NCS 2006 Shelf for ANSI 23-inch Configuration
