TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 105
Basic hardware procedures
4.10.2.2 Installing accessible drive and HDD bay covers

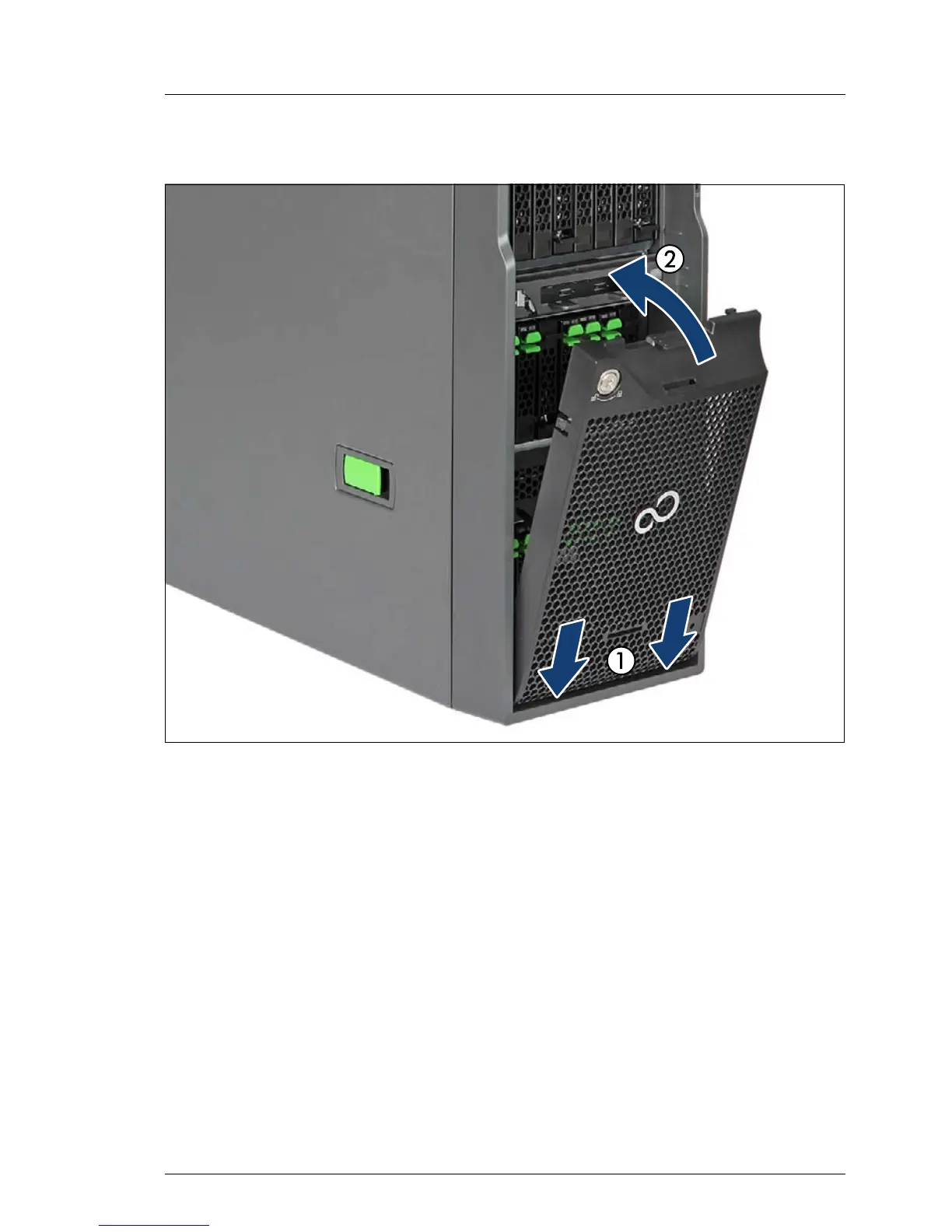

Figure 53: Installing the HDD bay cover
Ê Insert the HDD bay cover into the front cover as shown (1).
Ê Fold in the HDD bay cover until it locks in place (2).
