738 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Cabling
16.2 Cabling overviews
I The numbers in the cabling plans correspond to those shown in the list
of used cables above.
16.2.1 Basic cabling
This cabling overview includes the following components:

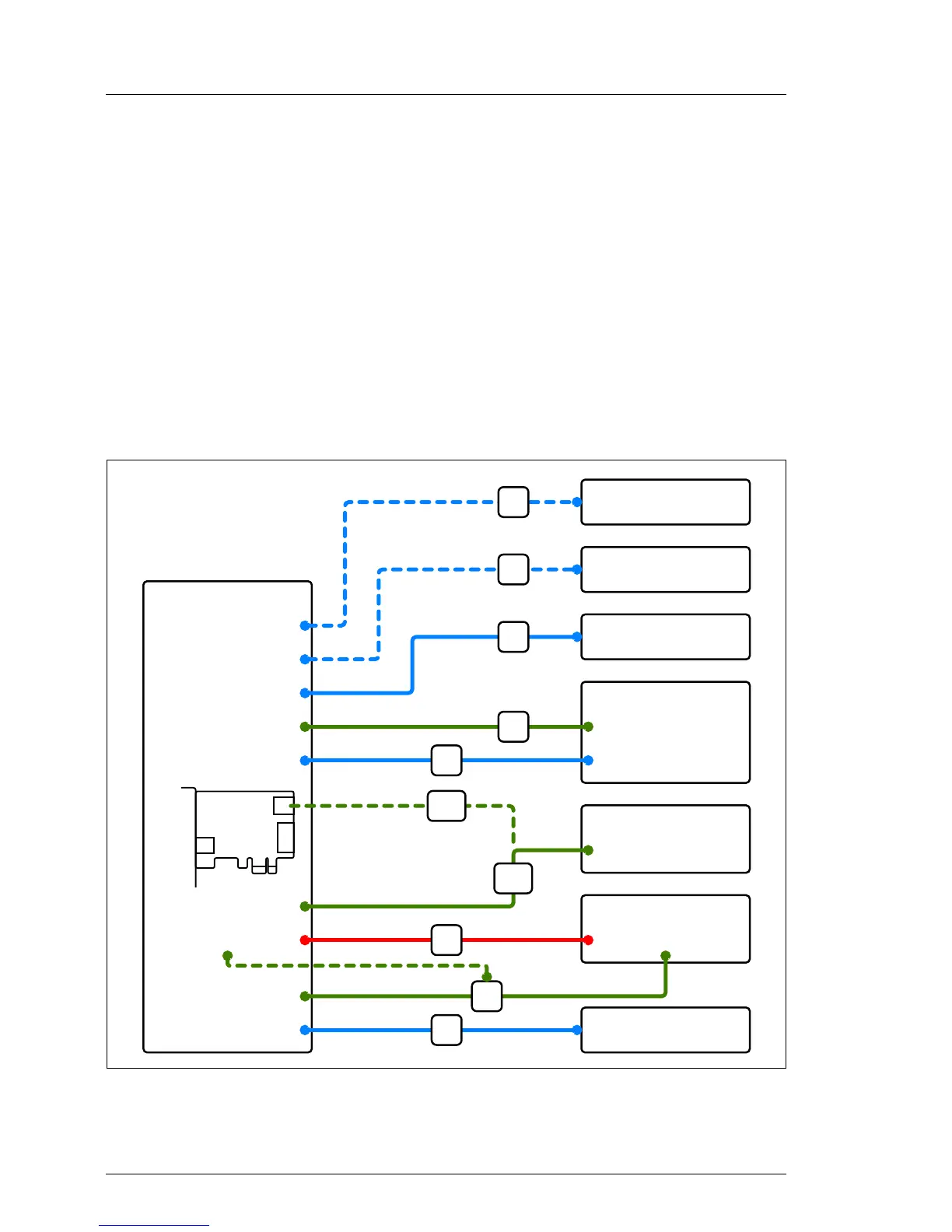

Figure 577: Basic cabling
– Intrusion switches
– ODD / USB / SAS backup drives
– Accessible drives
– Front panel connectors
System Board D2949
FRONT LAN
FRONT VGA
FRONTPANEL
SATA 1
SMB 1
SAS 1-4
USB INT 1
PWR HDD / ODD
INTRUSION
Drive Bay 1
ODD / Slimline ODD
LSD (in Multibay)
Front VGA
Front LAN
Front Panel
Drive Bay 2
Drive Bay 3
Intrusion Switches
USB Backup Drive
SAS Backup Drive
21A
7
13
5
12
11
10
20
14
21B
USB 3.0
