Fujitsu PRIMERGY RX350 S8

238 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Hard disk drives / solid state drives
Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).
Figure 142: Installing the intrusion switch holder (B)

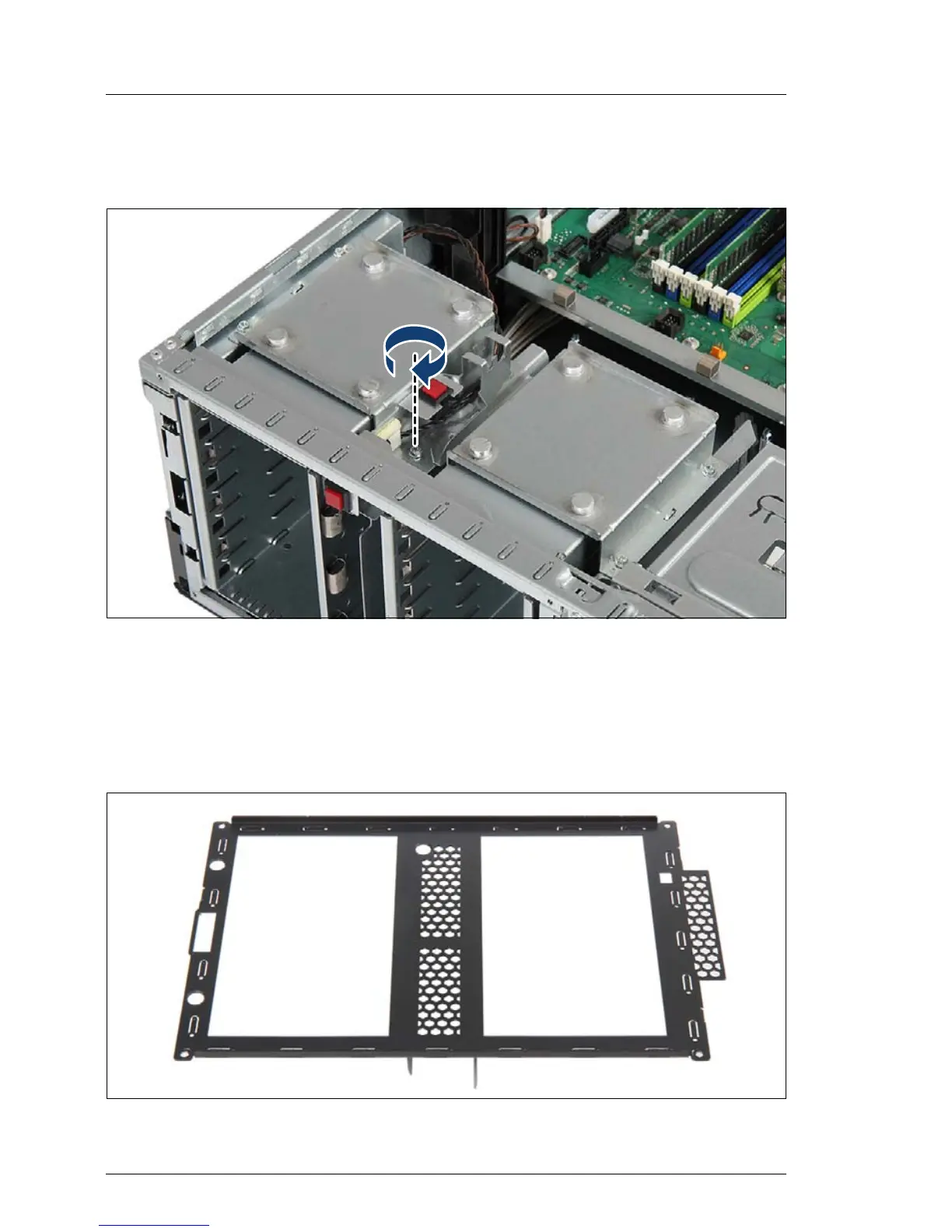

Ê Secure the intrusion switch holder on the HDD bay top cover with one
M3 x 4.5 mm screw.
7.2.10.6 Installing the 16x 2.5-inch HDD front panel
Figure 143: 16x 2.5-inch HDD front panel (C26361-K644-B930)
