TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 603
Front panel and external connectors
13.1.2 Removing the front panel module
13.1.2.1 Removing front panel cables from the system board

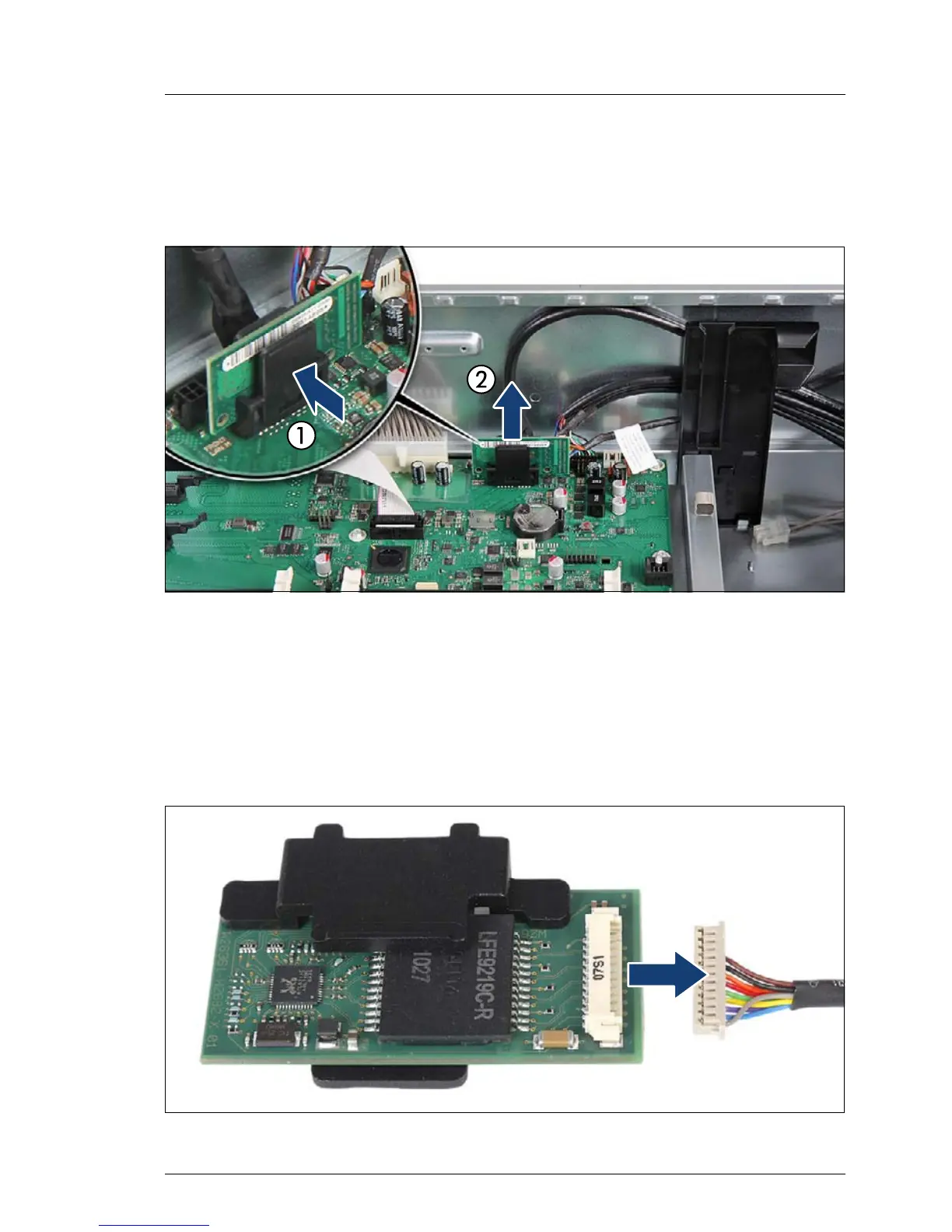

Figure 466: Disconnecting the front LAN board
Ê If applicable, disconnect the front LAN board from the system board:
Ê Press in on the locking latch on the front LAN board holder (1, see close-
up).
Ê While holding the locking latch pressed, pull the front LAN board out of
its socket (2).
Figure 467: Disconnecting the front LAN cable
