TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 621
Front panel and external connectors

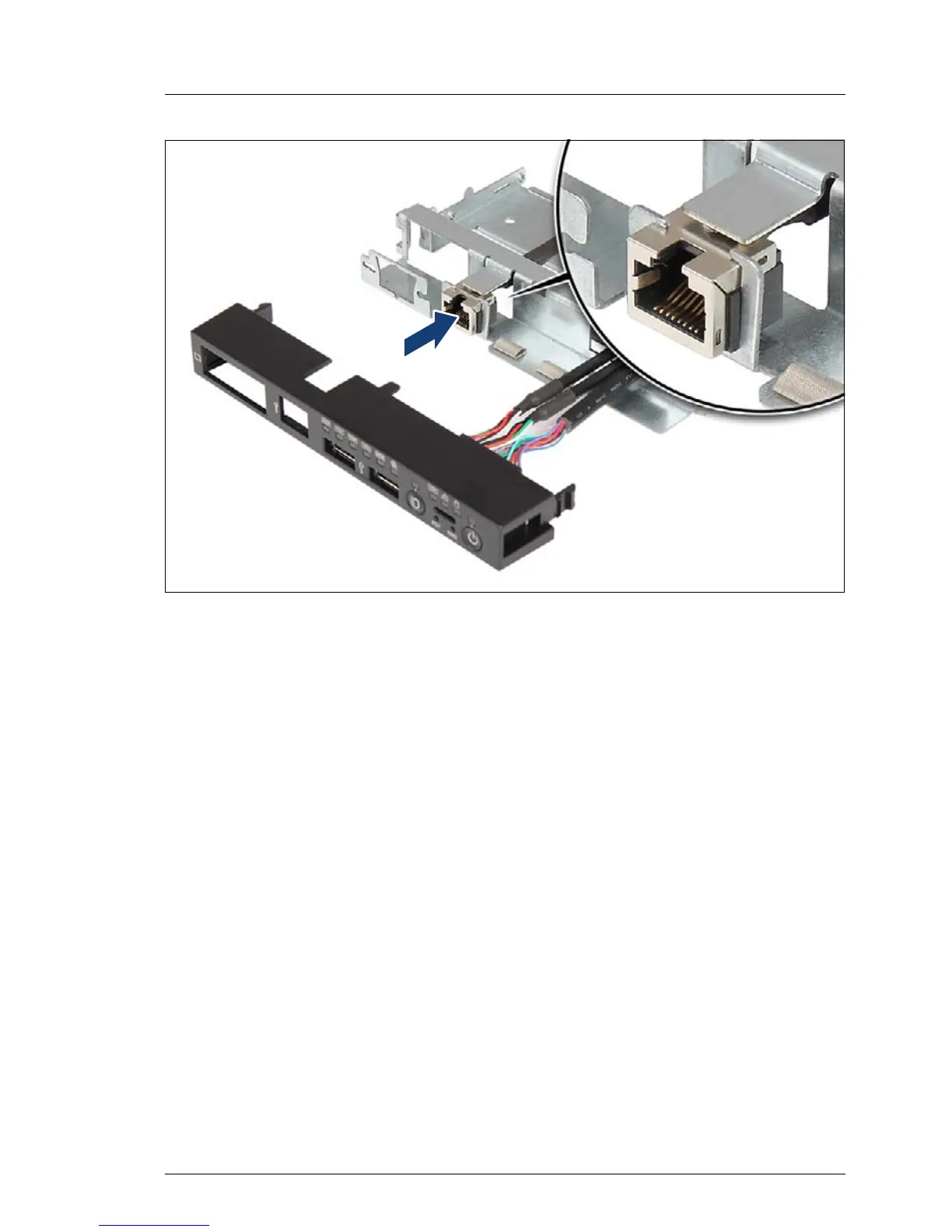

Figure 487: Mounting the front LAN connector (B)
Ê Carefully snap the front LAN cable connector into the mounting bracket (see
close-up).
13.2.1.5 Reassembling the front panel module
Ê "Mounting the front panel module cover" on page 609
13.2.1.6 Reinstalling the front panel module
Ê "Installing the front panel module" on page 611
