Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 171
Power supply
6.3.2 Removing a PSU module

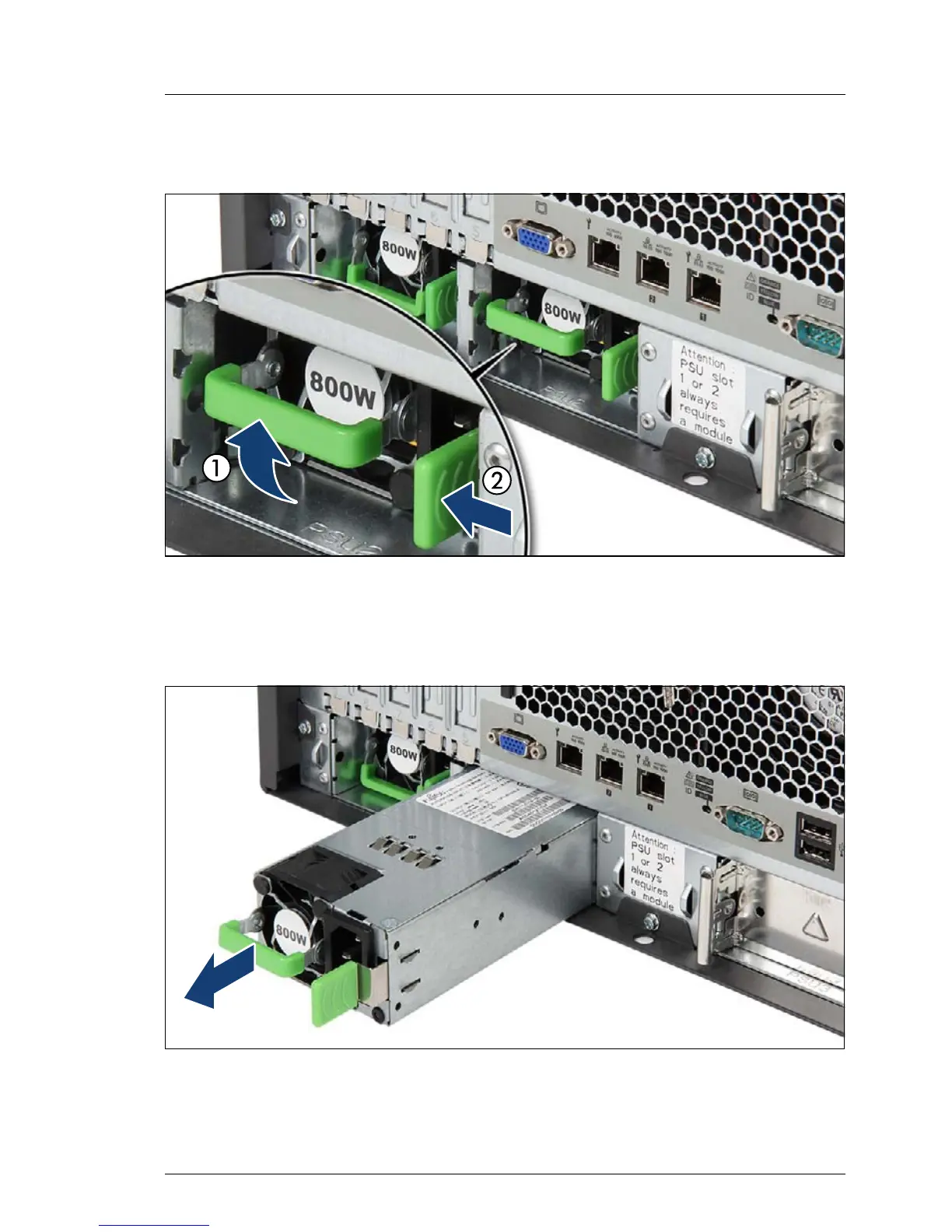

Figure 80: Removing a PSU module (A)
Ê Fold up the handle on the PSU module (1).
Ê Press in on the green locking latch (2).
Figure 81: Removing a PSU module (B)
Ê While keeping the green locking latch pressed, pull the PSU module out of
its slot.
