Fujitsu PRIMERGY RX350 S8

330 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Fans
8.2.2.2 Removing the system fan holder

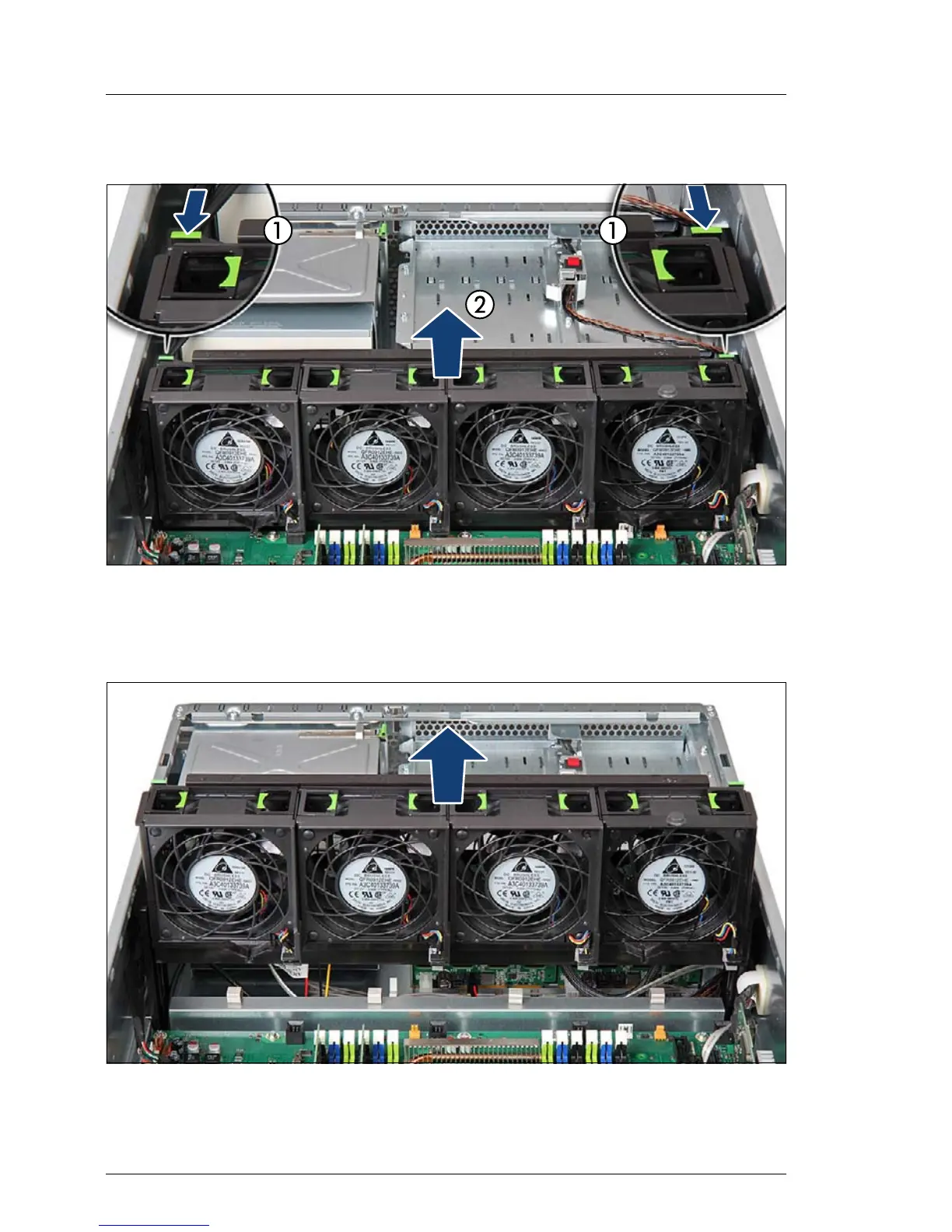

Figure 221: Removing the system fan holder (A)
Ê Press in on the two locking tabs (1) while slightly lifting up the system fan
holder (2)
Figure 222: Removing the system fan holder (B)
Ê Lift up the system fan holder and remove it from the chassis.
