Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 63
Basic hardware procedures
4.3 Disconnecting the server from the mains

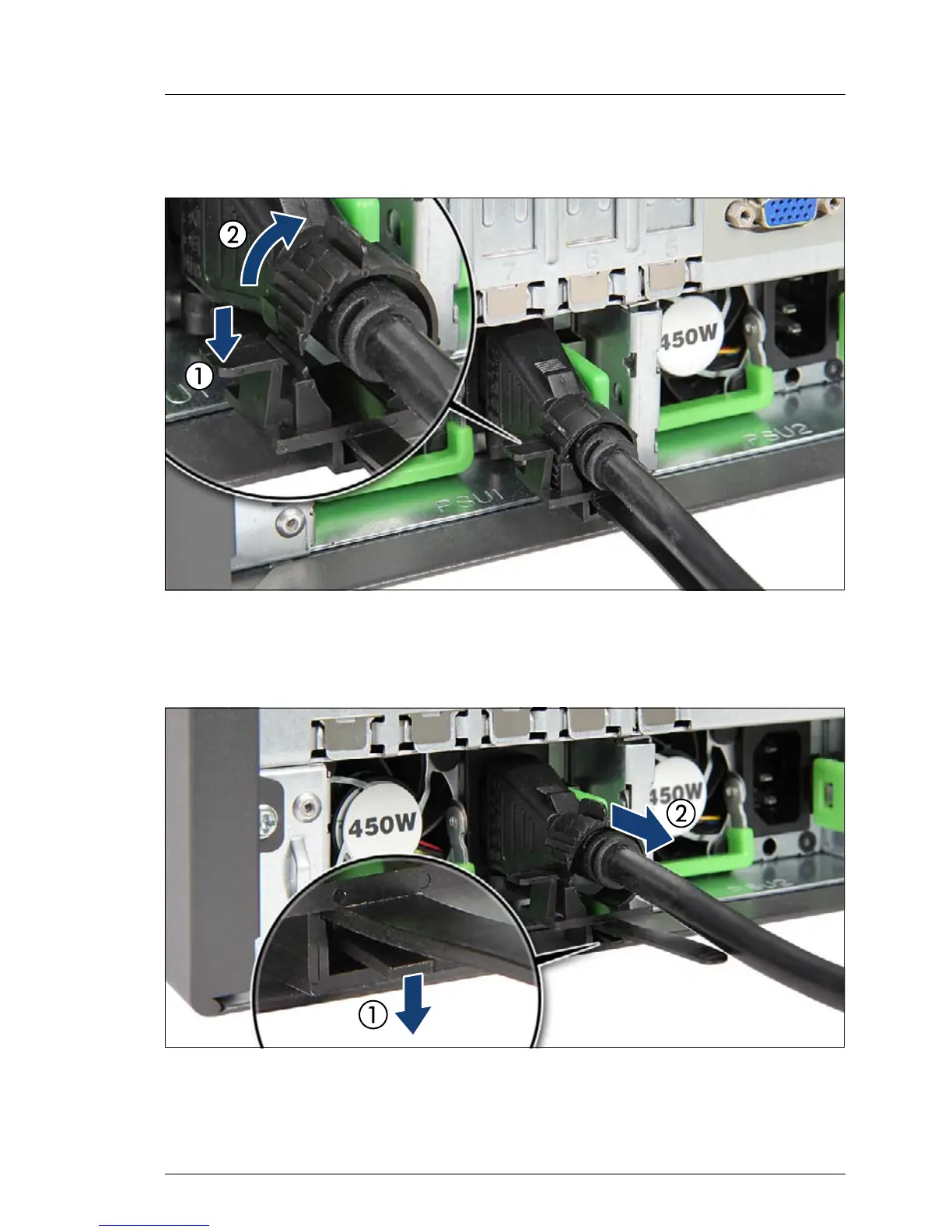

Figure 7: Opening the PSU cable bracket
Ê Press down on the release tab (1) until the loop on the PSU cable bracket
disengages (2).
Figure 8: Removing the power cord from the PSU cable bracket (A)
Ê Press down on the locking lever on the PSU cable bracket (1) and pull down
the loop from the cord grip (2).
