Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 607
Front panel and external connectors
13.1.2.3 Removing cables from the front panel module

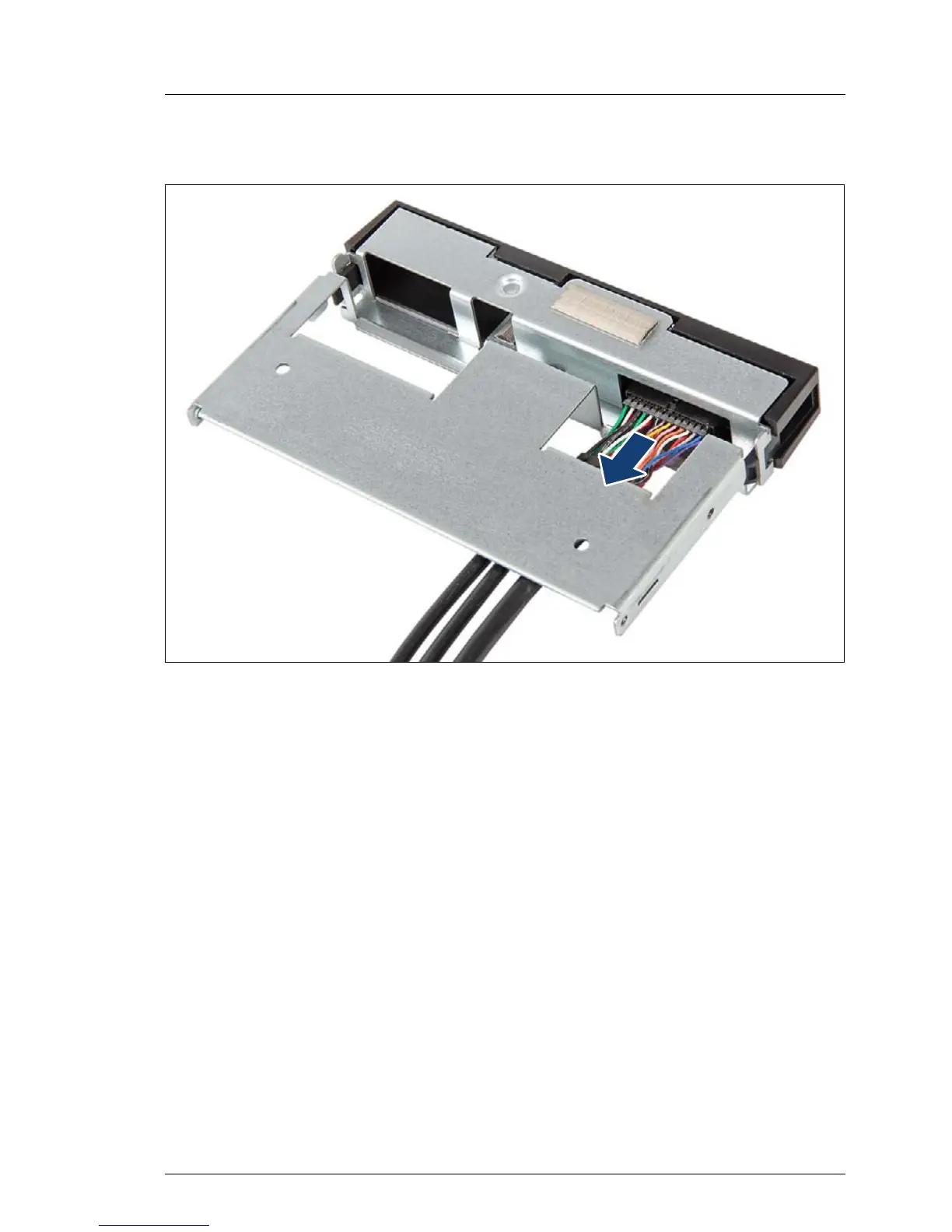

Figure 472: Removing the front panel cable
Ê Remove the front panel cable from the defective front panel module as
shown.
Ê If the front LAN connector has been installed in the defective front panel
module, remove the cable as described in section "Removing the front LAN
connector" on page 628.
Ê If the front VGA connector has been installed in the defective front panel
module, remove the cable as described in section "Removing the front VGA
connector" on page 639.
