Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 741
Cabling
16.2.4 Power cabling with 4x 3.5-inch HDDs and
multibay box

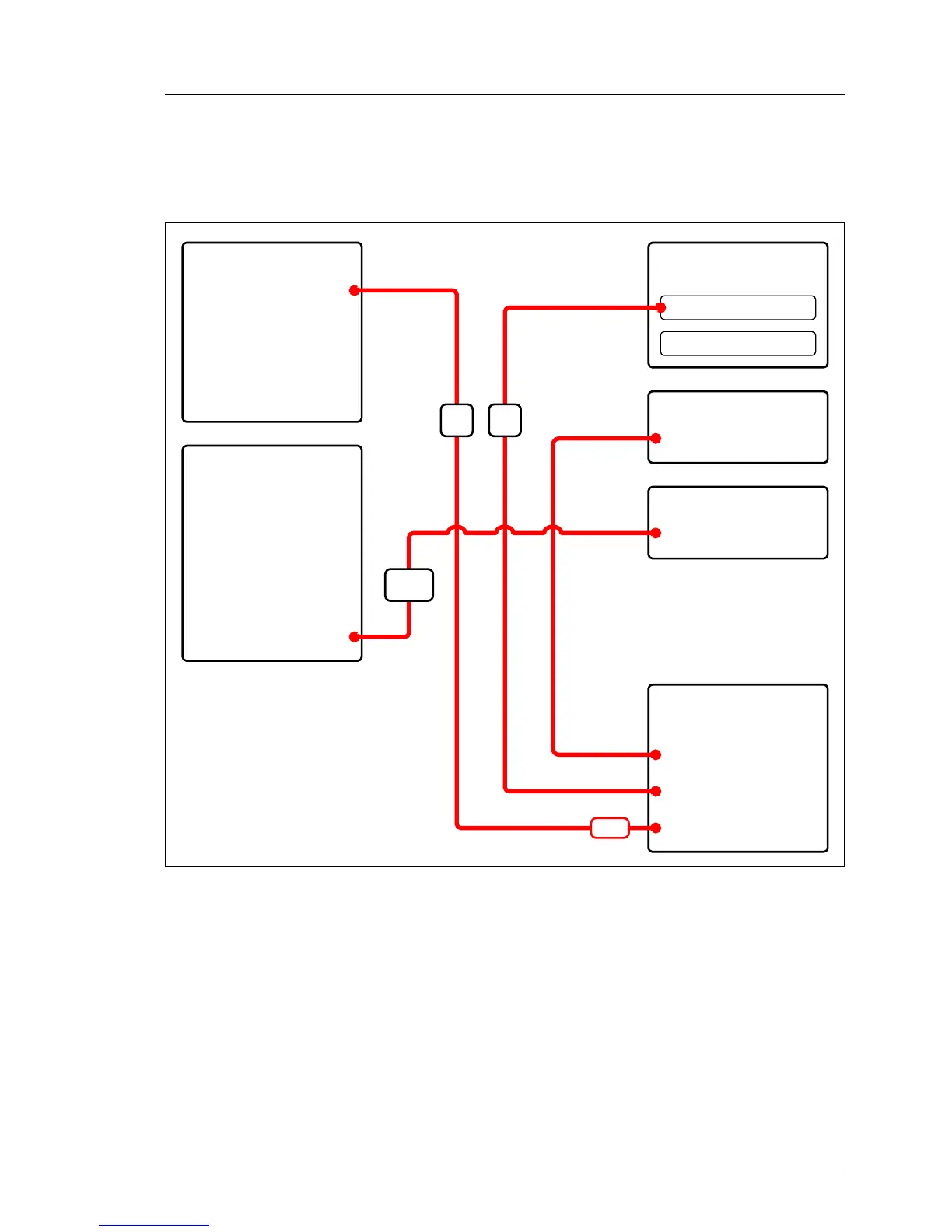

Figure 580: Power cabling: 4x 3.5" HDDs and multibay box
Drive Bay 2
Drive Bay 3
Accessible Drive
SAS Backup Drive
Drive Bay 1
Multibay Box
Slimline ODD
LSD
4x 3.5-inch HDD
Backplane 1
X9
X10
X7
System Board D2949
PSU CONTROL
PWR
Power Backplane
X25
X21
X20
X22 / X23
PWR HDD / ODD
P1
1
8B
5 / 7
Power cable according
to accessible drive
