TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 91
Basic hardware procedures
4.9 Handling accessible drive bays
4.9.1 Opening the accessible drive locking bar
4.9.1.1 Tower servers

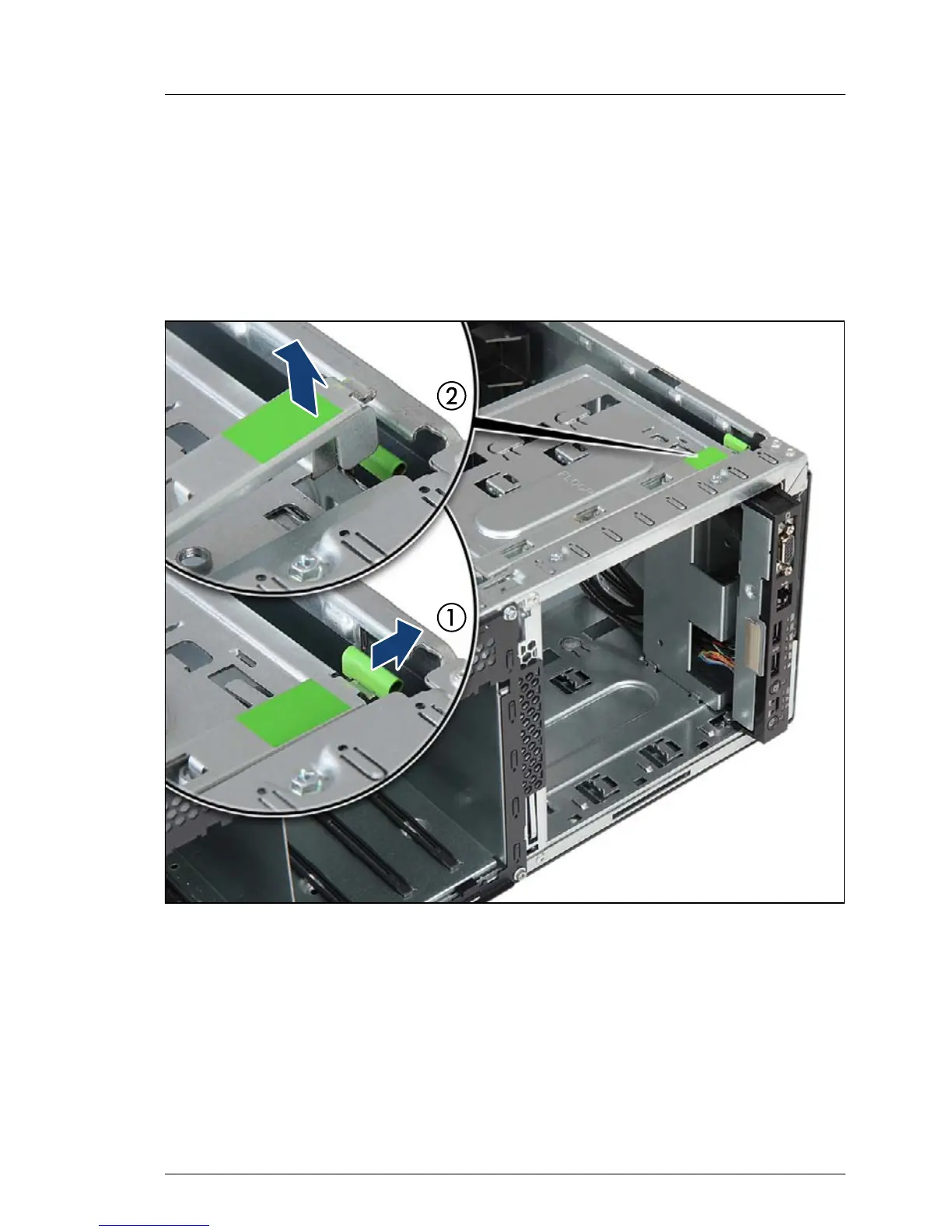

Figure 38: Opening the accessible drive locking bar
Ê Press out on the locking latch to disengage the accessible drive locking bar
(1).
Ê Fold up the accessible drive locking bar (2).
