16.2.8 SAS cabling with 8x 3.5-inch HDDs and
2x 3.5-inch HDD extension box

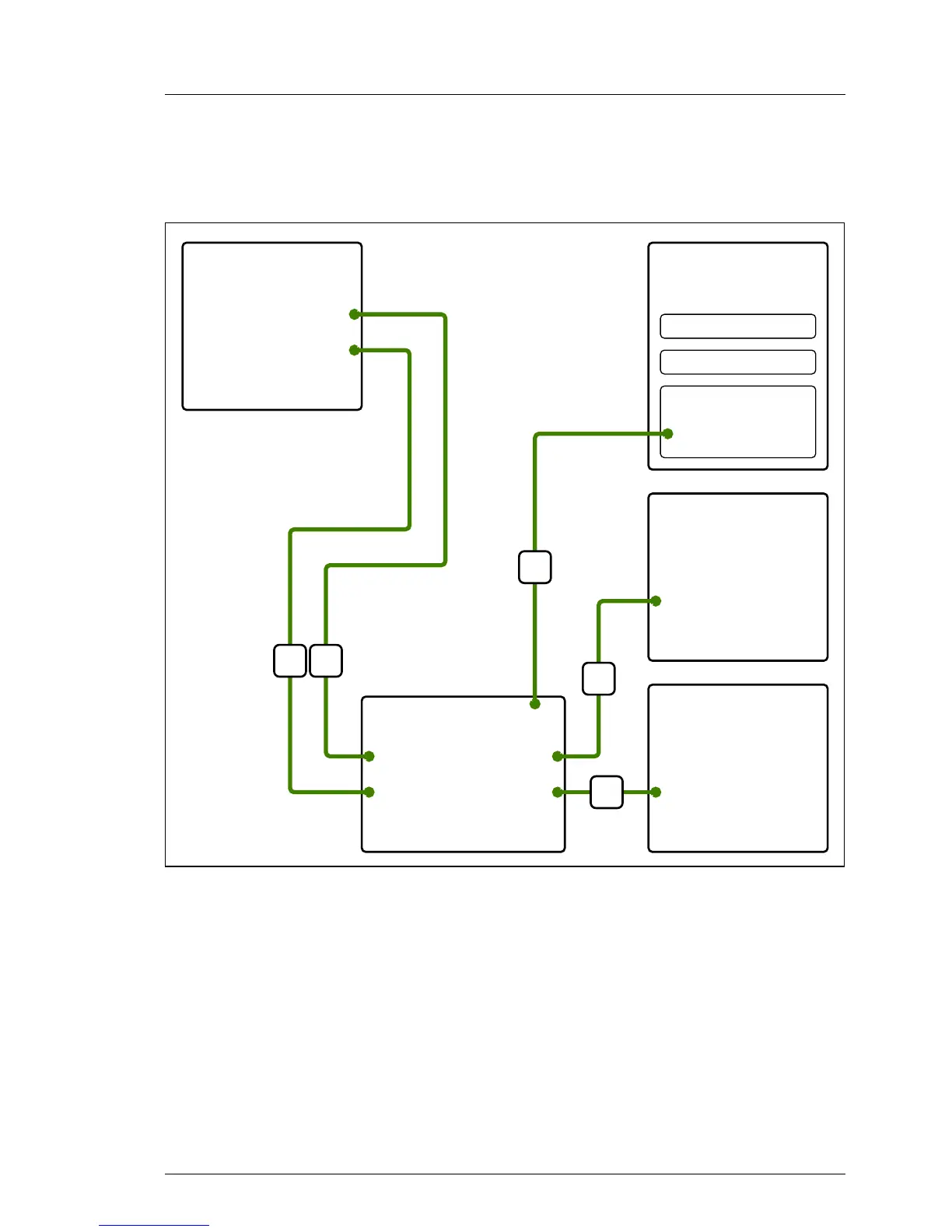

Figure 584: SAS cabling: 8x 3.5" HDDs and 2x 3.5" HDD extension box
Drive Bays 2-3
2x 3.5-inch
HDD Extension Box
HDD Backplane
Slimline ODD
X1
LSD
SAS Expander Board
X6 X4X5 X3
X2
X1
MLC 2
MLC 1
4x 3.5-inch HDD
Backplane 1
X1
X10
X7
4x 3.5-inch HDD
Backplane 2
X1
X10
X7
19
SAS Controller 1
(PCI Slot 10)
MLC 1
MLC 2
BBU
16
1616
17
