Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 471
Main memory
Notes on Independant Channel mode
– Configurations marked in grey are only possible with registered DIMMs
(RDIMMS and LR-DIMMs)

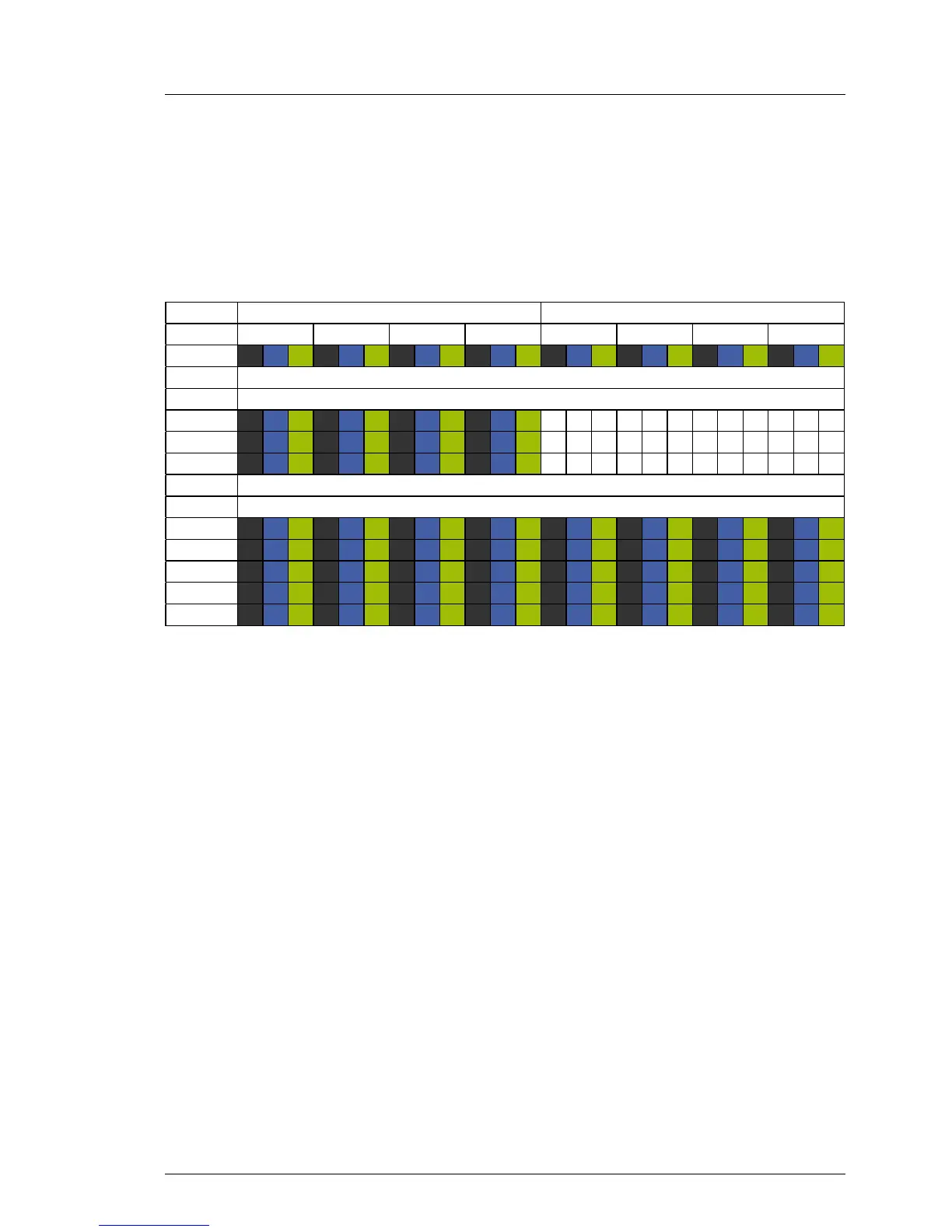

10.1.1.3 Mirrored Channel and Performance modes
Notes on Mirrored Channel and Performance modes
– Always populate memory modules in multiples of 4.
– Same numbers mean identical modules (capacity, rank).
2 UPC 1 UPC UPC
Channel
A B D C E F H G
DIMM
1A 2A 3A 1B 2B 3B 1D 2D 3D 1C 2C 3C 1E 2E 3E 1F 2F 3F 1H 2H 3H 1G 2G 3G
noitarugifnoc UPC onoM sMMID #
4
1 1 1 1
8
1 2 1 2 1 2 1 2
12
1 2 3 1 2 3 1 2 3 1 2 3
noitarugifnoc UPC lauD sMMID #
8
1 1 1 1 2 2 2 2
12
1 3 1 3 1 3 1 3 2 2 2 2
16
1 3 1 3 1 3 1 3 2 4 2 4 2 4 2 4
20
1 3 5 1 3 5 1 3 5 1 3 5 2 4 2 4 2 4 2 4
24
1 3 5 1 3 5 1 3 5 1 3 5 2 4 6 2 4 6 2 4 6 2 4 6
