14.5.1.2 Installing the iRMC microSD card

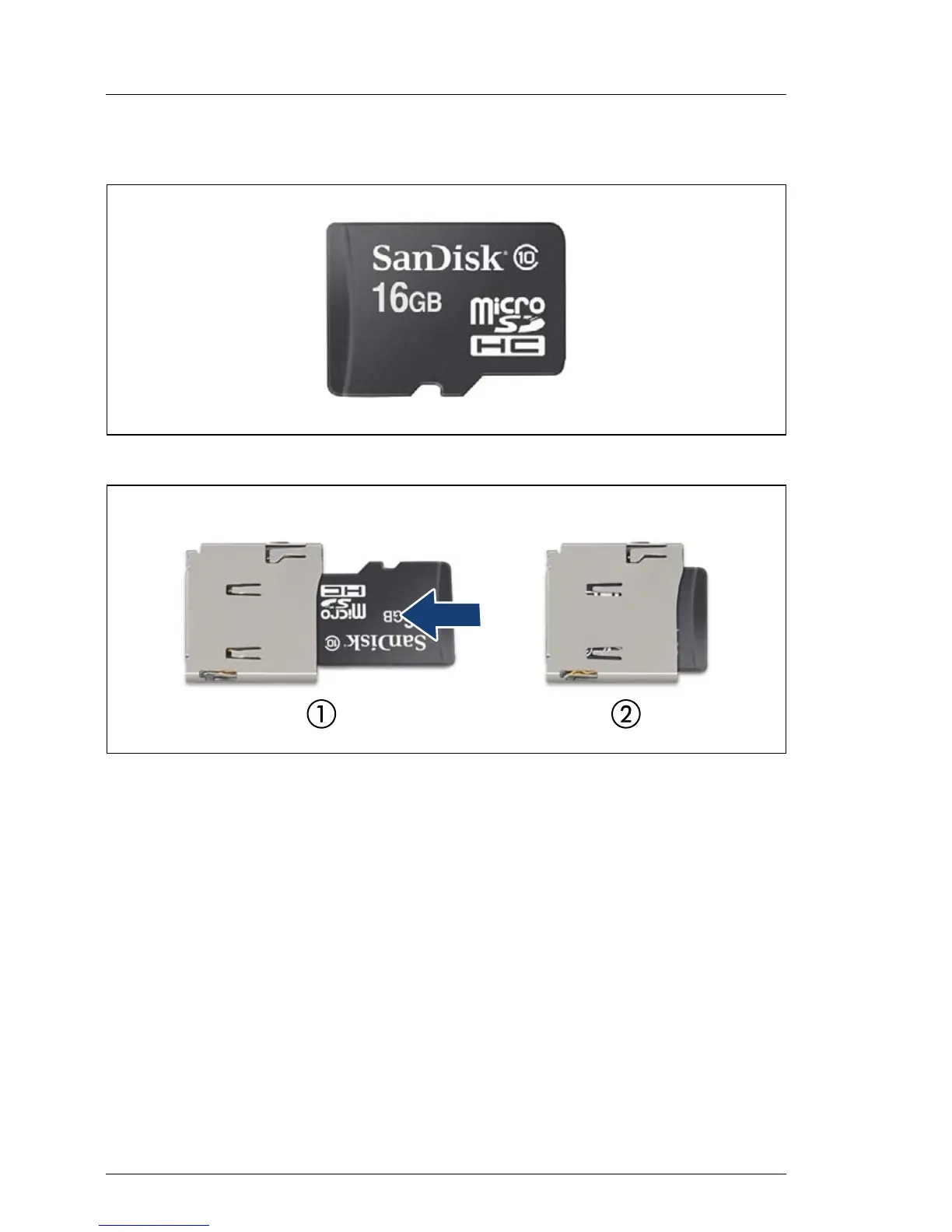

Figure 530: iRMC microSD card
Figure 531: Installing the iRMC microSD card
Ê With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) until it locks in place (2).
I The onboard position of the microSD card slot can be found in section
"Connectors and indicators on the system board" on page 776.
