TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 609
Front panel and external connectors

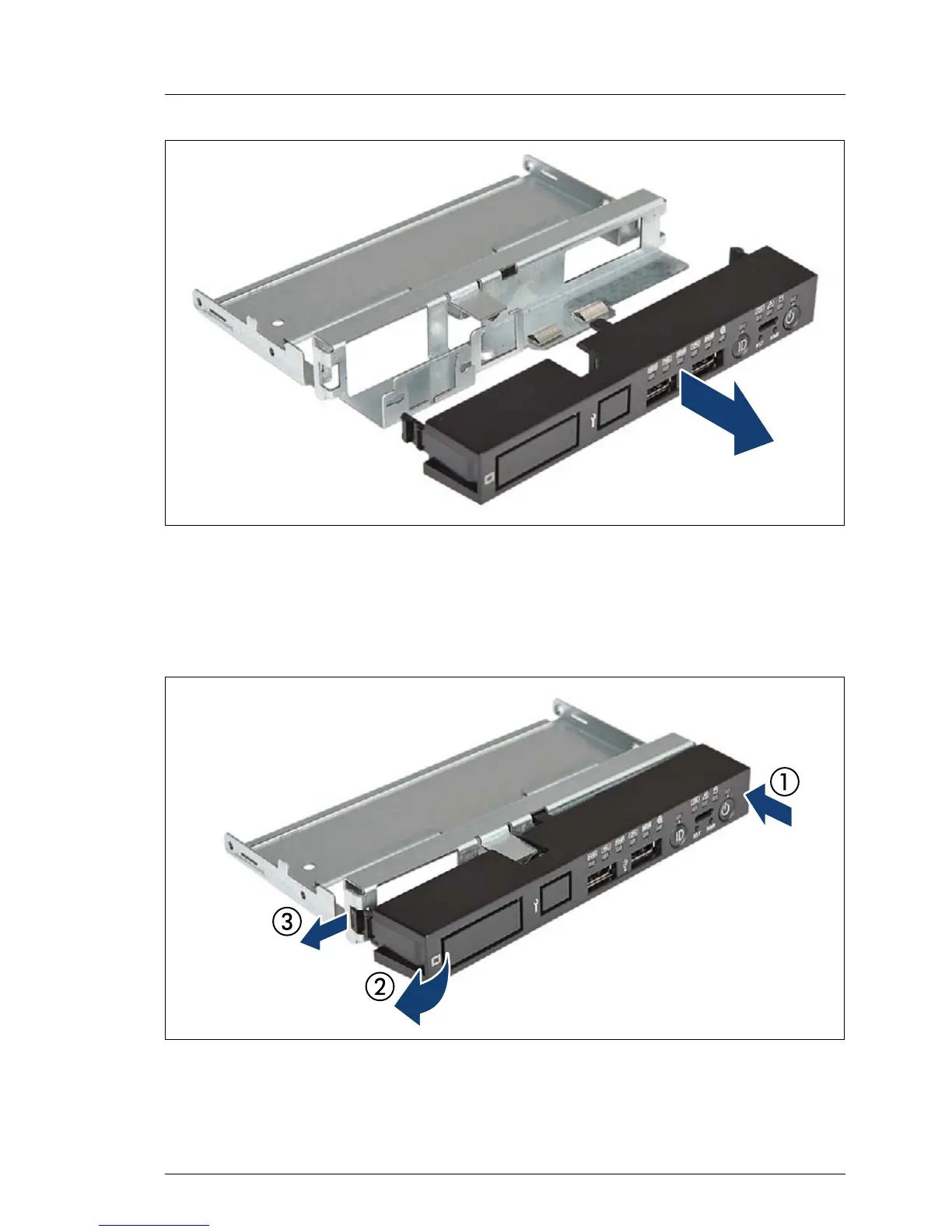

Figure 474: Removing the front panel module cover (B)
Ê Remove the front panel module cover from the front panel frame.
13.1.3.2 Mounting the front panel module cover
Figure 475: Mounting the front panel module cover
Ê Hook the locking latch on the right side of the front panel module cover into
the front panel frame (1).
