Fujitsu PRIMERGY RX350 S8

220 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Hard disk drives / solid state drives
7.2.9.4 Replacing a 2.5-inch HDD / SSD SAS backplane

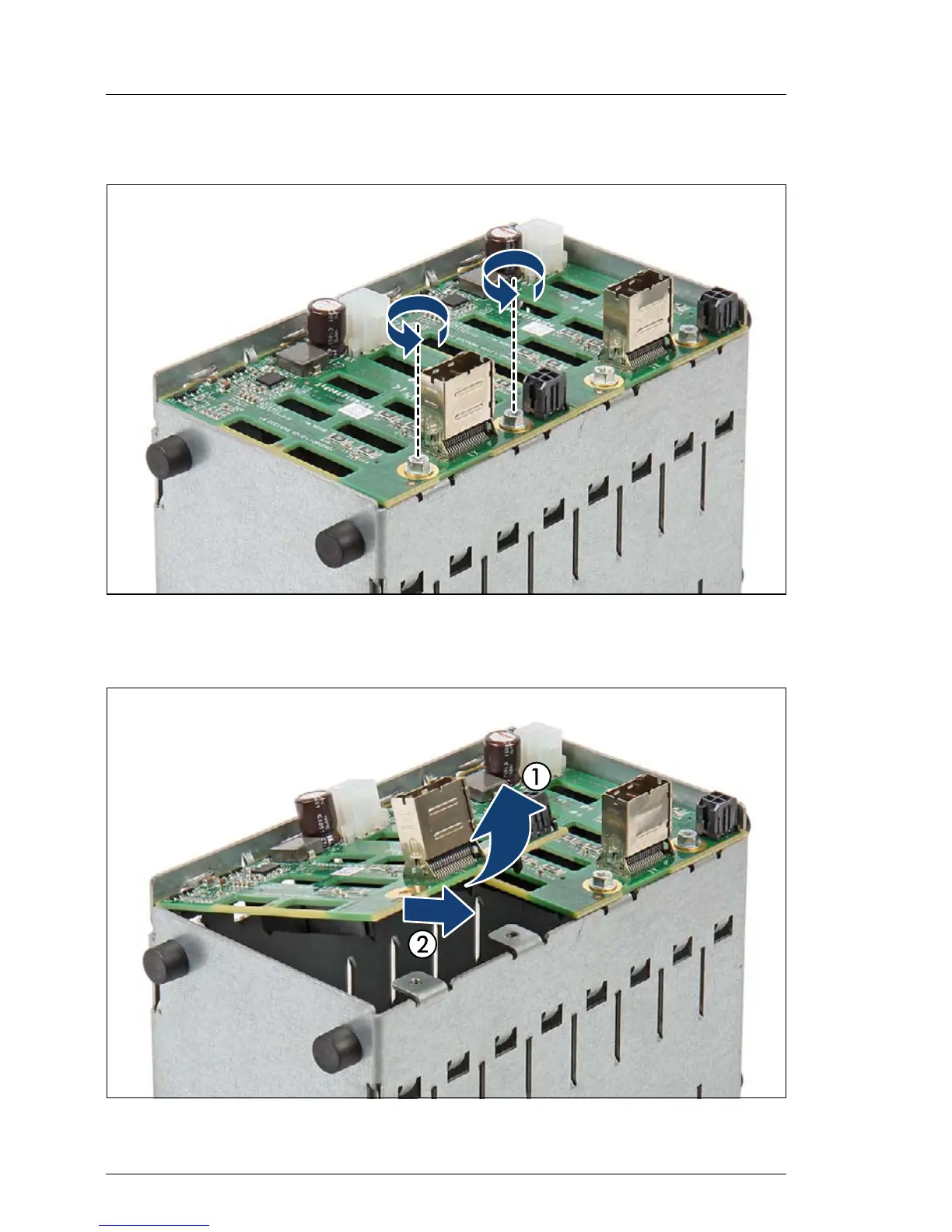

Figure 120: Removing the defective 2.5-inch HDD / SSD SAS backplane (A)
Ê Remove two screws from the defective 2.5-inch HDD SAS backplane.
Figure 121: Removing the defective 2.5-inch HDD / SSD SAS backplane (B)
