8.2.1.3 Installing system fan modules

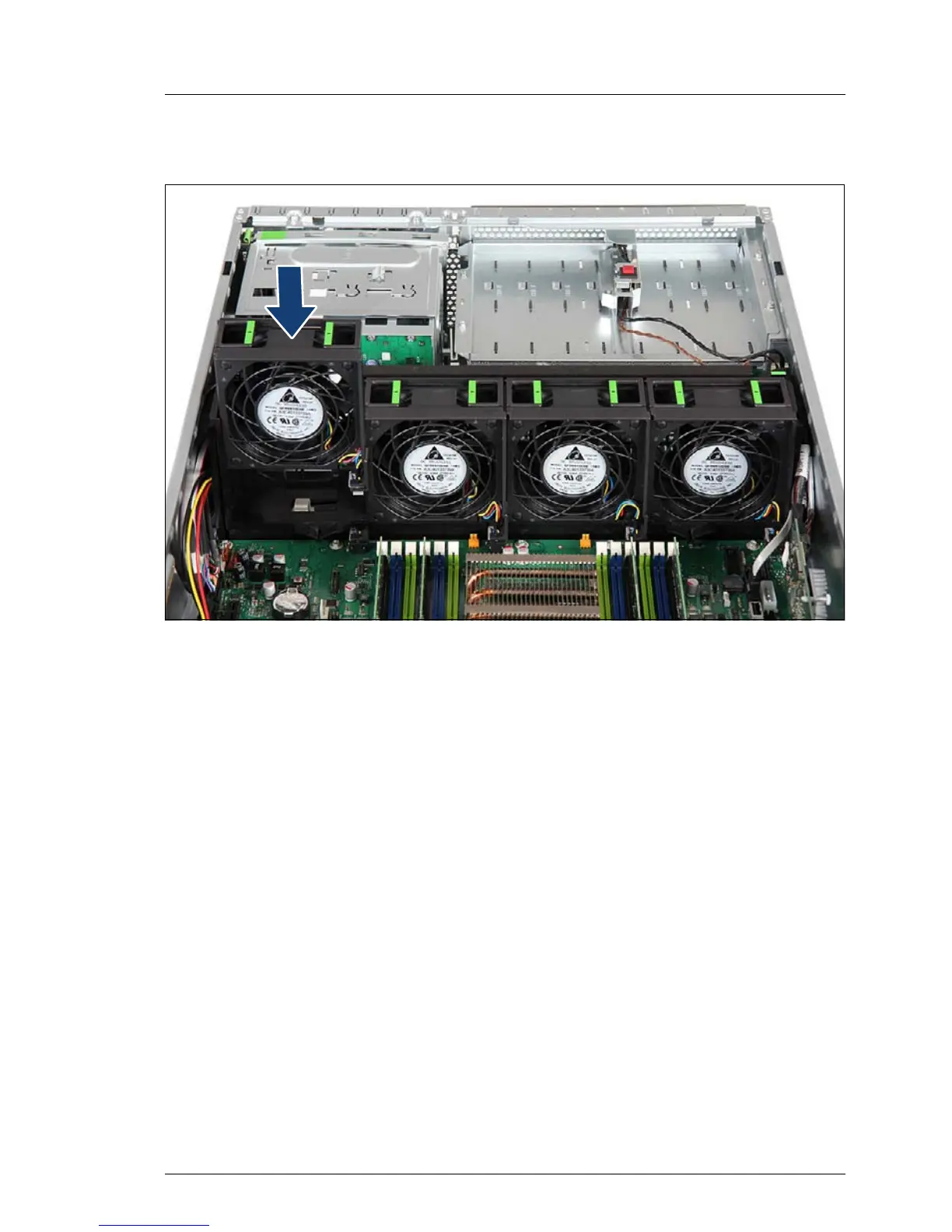

Figure 219: Installing a system fan module (A)
Ê Fit the new fan module into its bay in the system fan holder as shown with
its label facing the server rear.
I A high performance fan module (A3C40171937) is required in fan
position 4 in some configurations involving one or two GPGPU /
coprocessor cards. For further information, please refer to sections
"GPGPU / coprocessor card overview" on page 382 and "Installing
the GPGPU air duct" on page 408.
