596 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Accessible drives
12.7.2.3 Removing the slimline ODD from the extension box

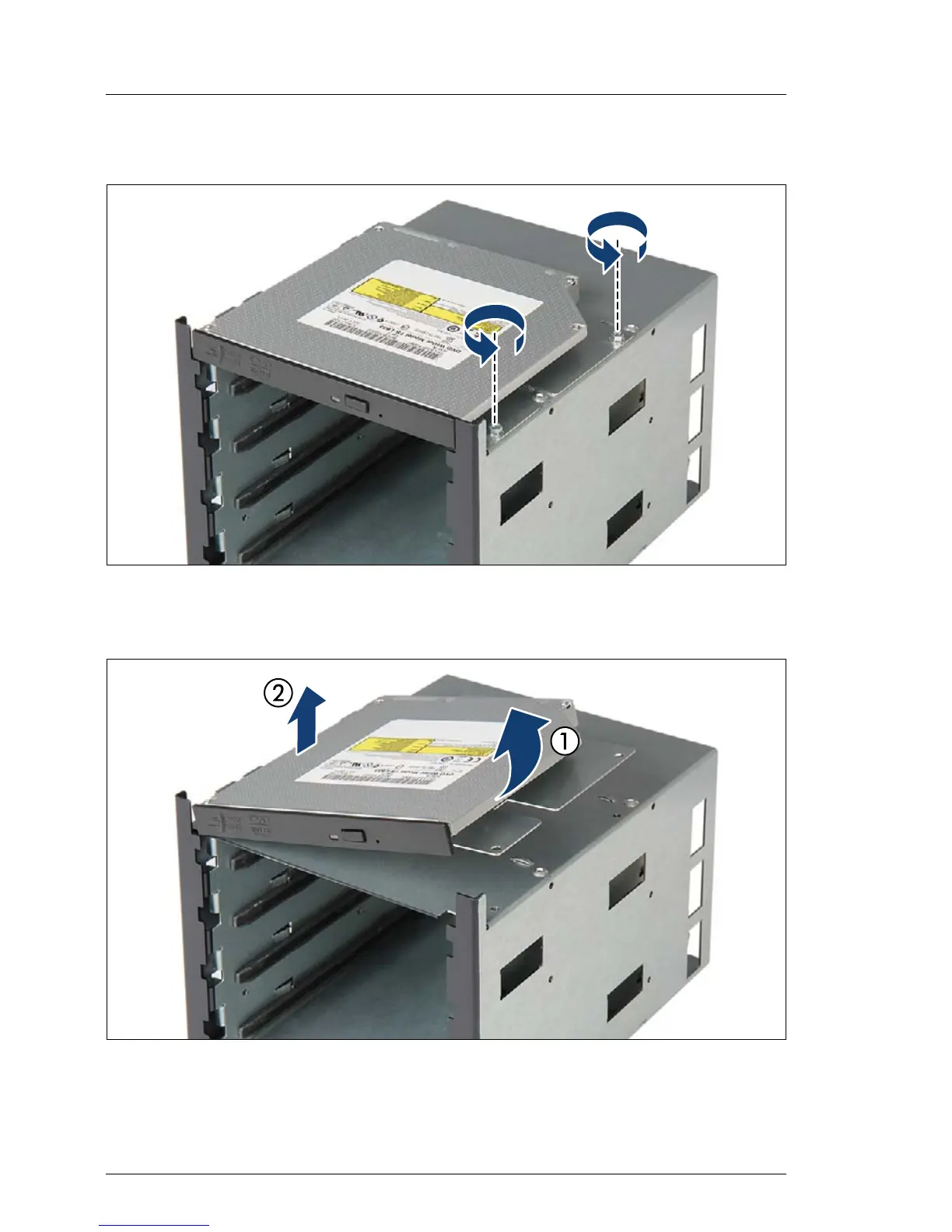

Figure 462: Removing the slimline ODD from the extension box (A)
Ê Remove two screws from the slimline ODD mounting bracket.
Figure 463: Removing the slimline ODD from the extension box (B)
Ê Fold up (1) and remove (2) the slimline ODD as shown.
