9.5.2.3 Installing the SAS RAID controller
Ê Remove the SAS RAID controller from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê If applicable, attach the required slot bracket to the expansion card as
described in section "Preparing the SAS RAID controller" on page 427.

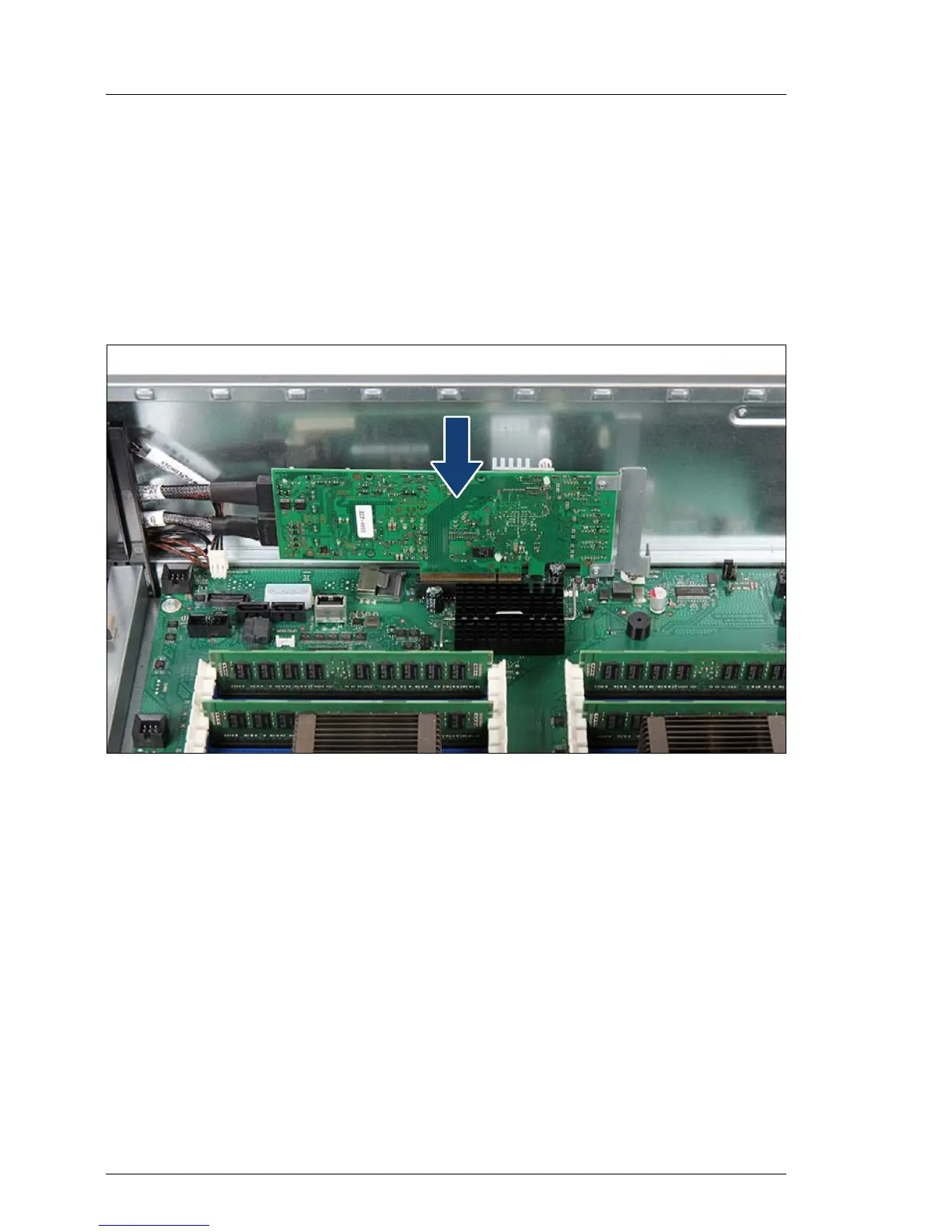

Figure 323: Installing the SAS RAID controller
Ê Carefully insert the RAID controller into PCI slot 10 and press down firmly
until it is fully seated in the slot.
I For slot preferences, please refer to section "Basic information" on
page 346.
