Ê When working on a rack-mounted server:
"Extending / removing the server from the rack" on page 64
Ê "Opening the server" on page 68
Ê "Removing the system air duct" on page 81
Ê "Removing the system fan holder" on page 330
7.4.6.2 Removing the 4x 3.5-inch HDD extension box
Ê Remove all cables from the 4x 3.5-inch HDD extension box backplane.
Ê If applicable, remove all cables from the slimline ODD.
Ê Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 91.

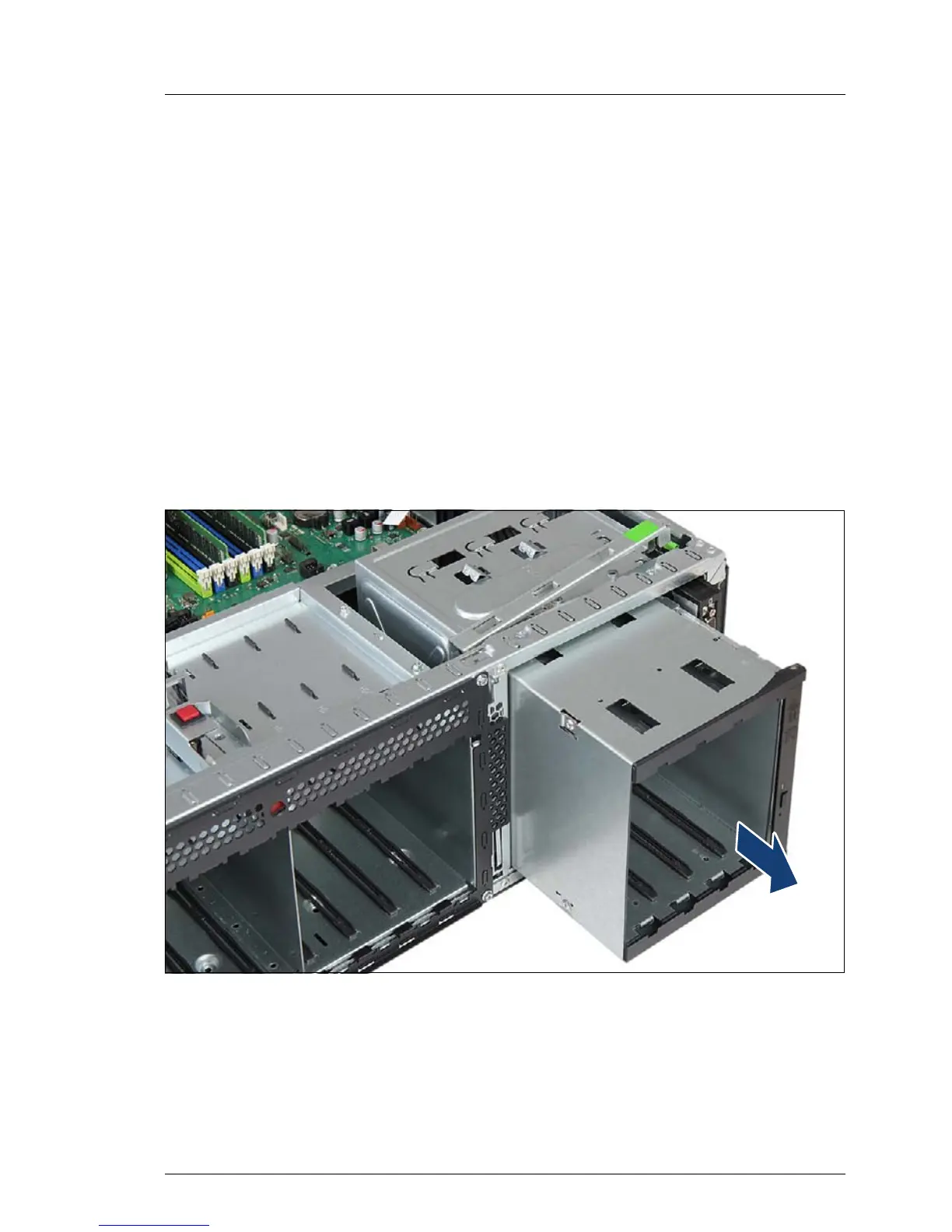

Figure 203: Removing the HDD extension box
Ê Carefully pull the 4x 3.5-inch HDD extension box out of its installation bays.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 93.
