Fujitsu PRIMERGY RX350 S8

422 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Expansion cards and backup units
9.4.2.11 Installing perforated drive cover modules
I In order to satisfy GPGPU / coprocessor card cooling requirements, two
perforated drive cover modules must be mounted in accessible drive
bays 1 and 2.

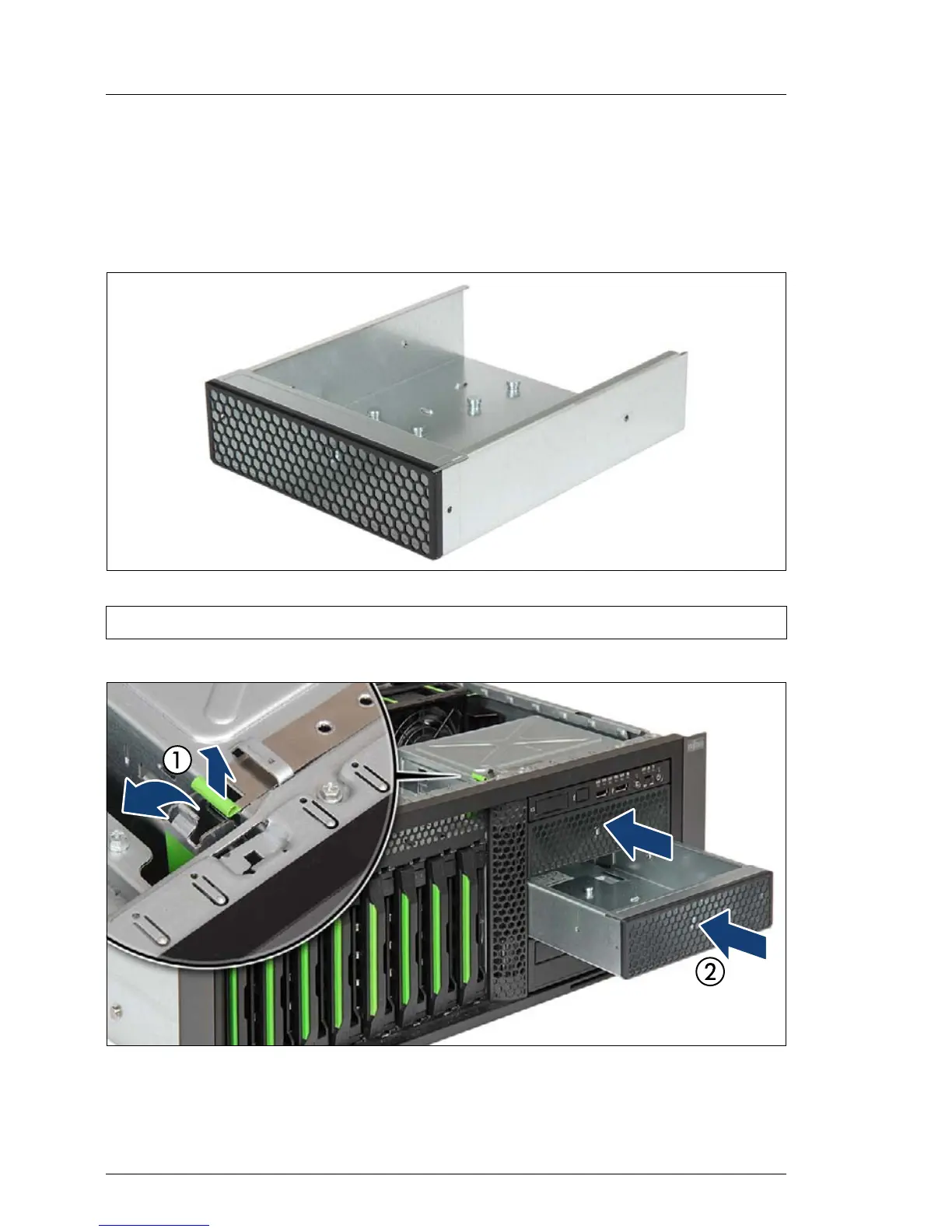

Figure 319: Installing perforated drive cover modules (A)
Ê Pull up on the locking latch to disengange the accessible drive locking bar
(1).
Perforated drive cover module A3C40140230
