TX300 S8 / RX350 S8
Upgrade and Maintenance Manual
461
Expansion cards and backu
p units
9.6.7.2
Removing
an FBU module from t
he chassis
Ê
Remove the FBU module from the chassis as described in section
"Removing an FBU" on page
454
.
9.6.7.3
Removing
the FBU from the FBU
holder

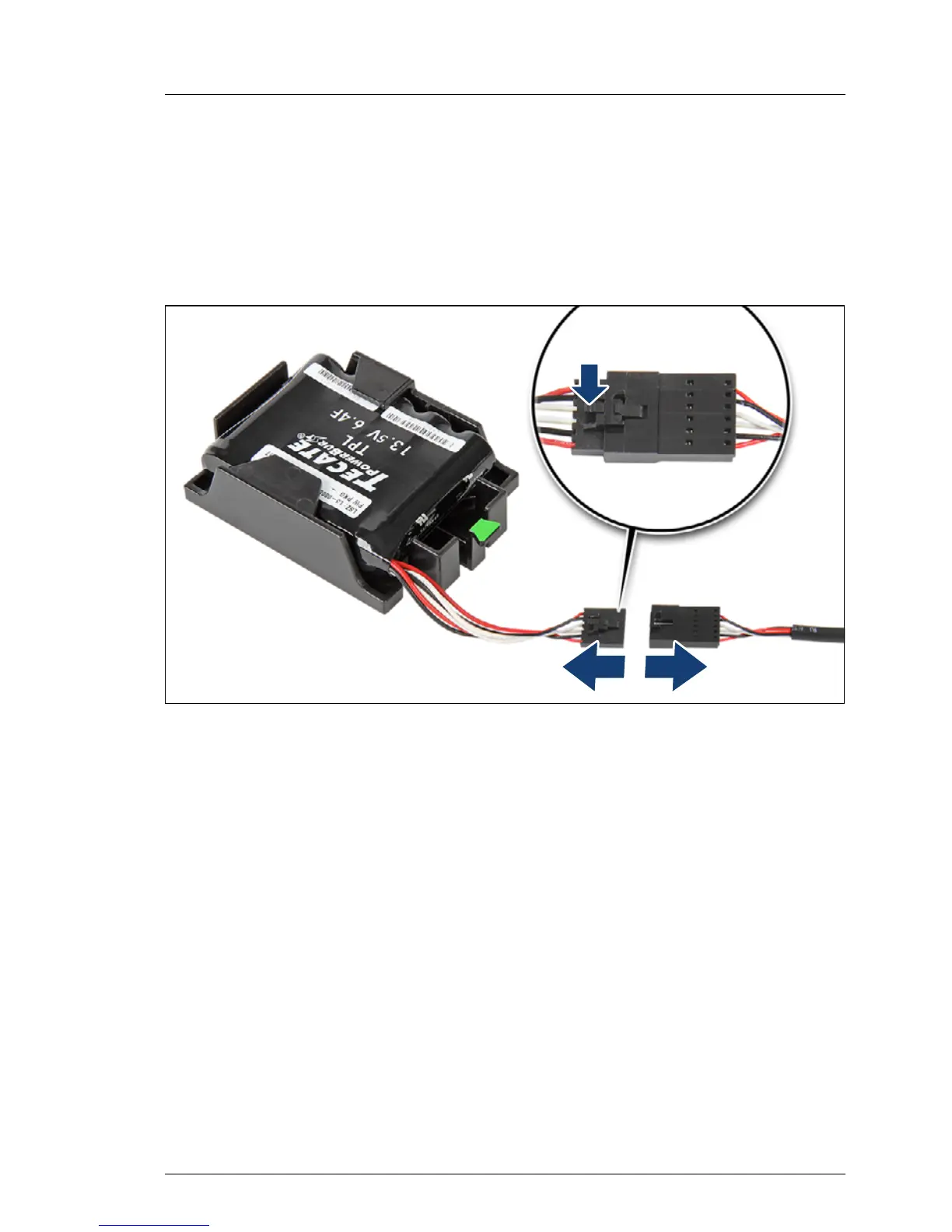

Figure 353:
Disconnecting the
FBU adapter cable
from the FB
U
Ê
Press down on the locking latch on the FPU cable (see close-up) and
disconnect the FBU adapter cable.
