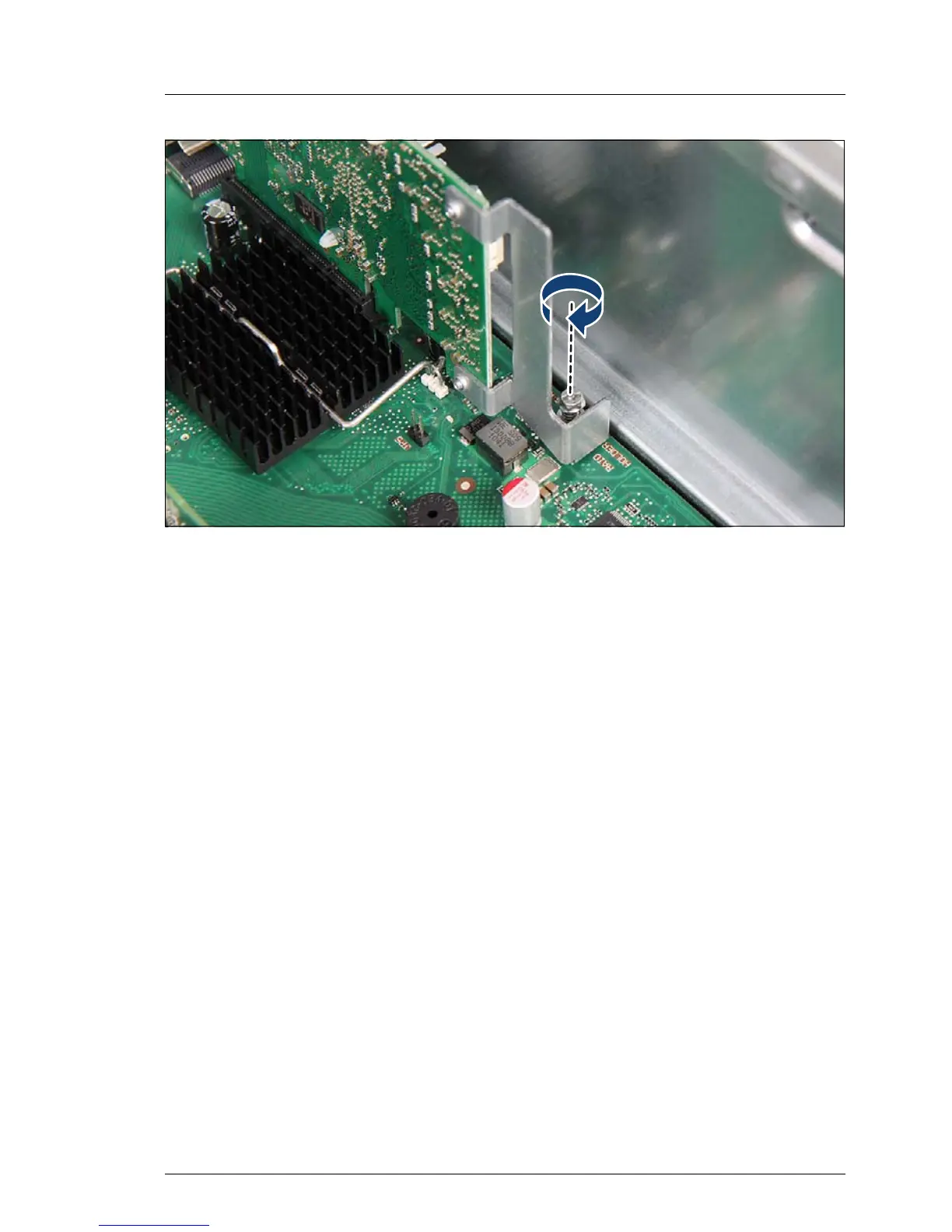

Figure 324: Securing the SAS RAID controller
Ê Secure the RAID controller with the captive screw on the RAID card holder.
9.5.2.4 Connecting cables to the expansion card
Ê Connect SAS cables to the SAS RAID controller.
I For a complete cabling overview, please refer to section "Cabling
overviews" on page 738.
9.5.2.5 Connecting a backup unit to the expansion card
Ê If applicable, connect a BBU or FBU to the expansion card as described in
sections "Installing a BBU" on page 435 or "Installing an FBU" on page 440.
9.5.2.6 Concluding steps
Ê "Installing the system air duct" on page 83
Ê "Closing the server" on page 98
Ê When working on a rack-mounted server:
"Mounting the server in the rack" on page 115
Ê Reconnect all external cables to the replaced expansion card.
Ê "Connecting the server to the mains" on page 118
