TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 77

Basic hardware procedures

4.5.2.4 Removing accessible drive and HDD bay covers

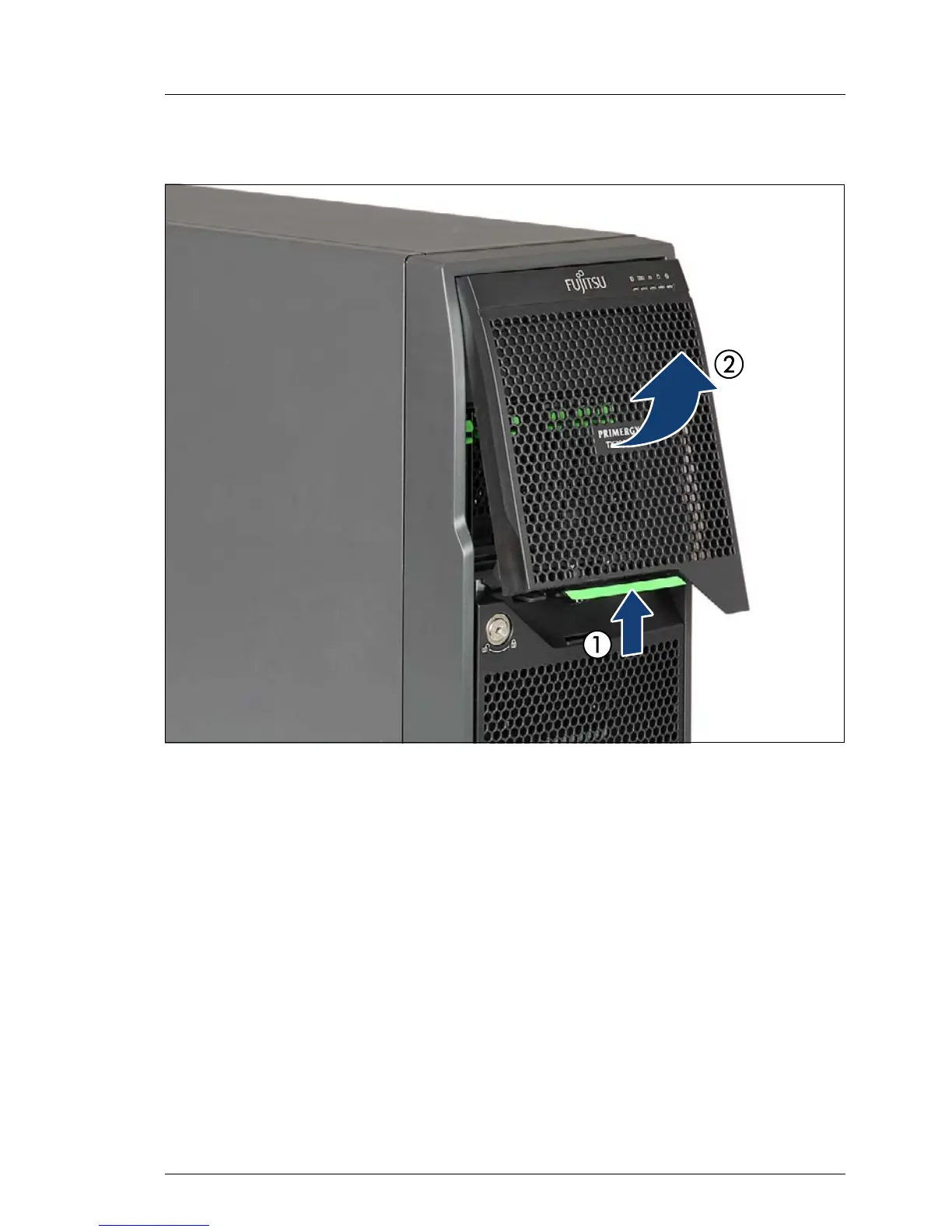

Figure 24: Removing the accessible drive bay cover

Ê Press up on the locking latch (1) and fold out the accessible drive bay cover

(2).

Ê Remove the accessible drive bay cover from the front cover.
