7.2.2 SAS 3.0 HDD / SSD backplane cabling

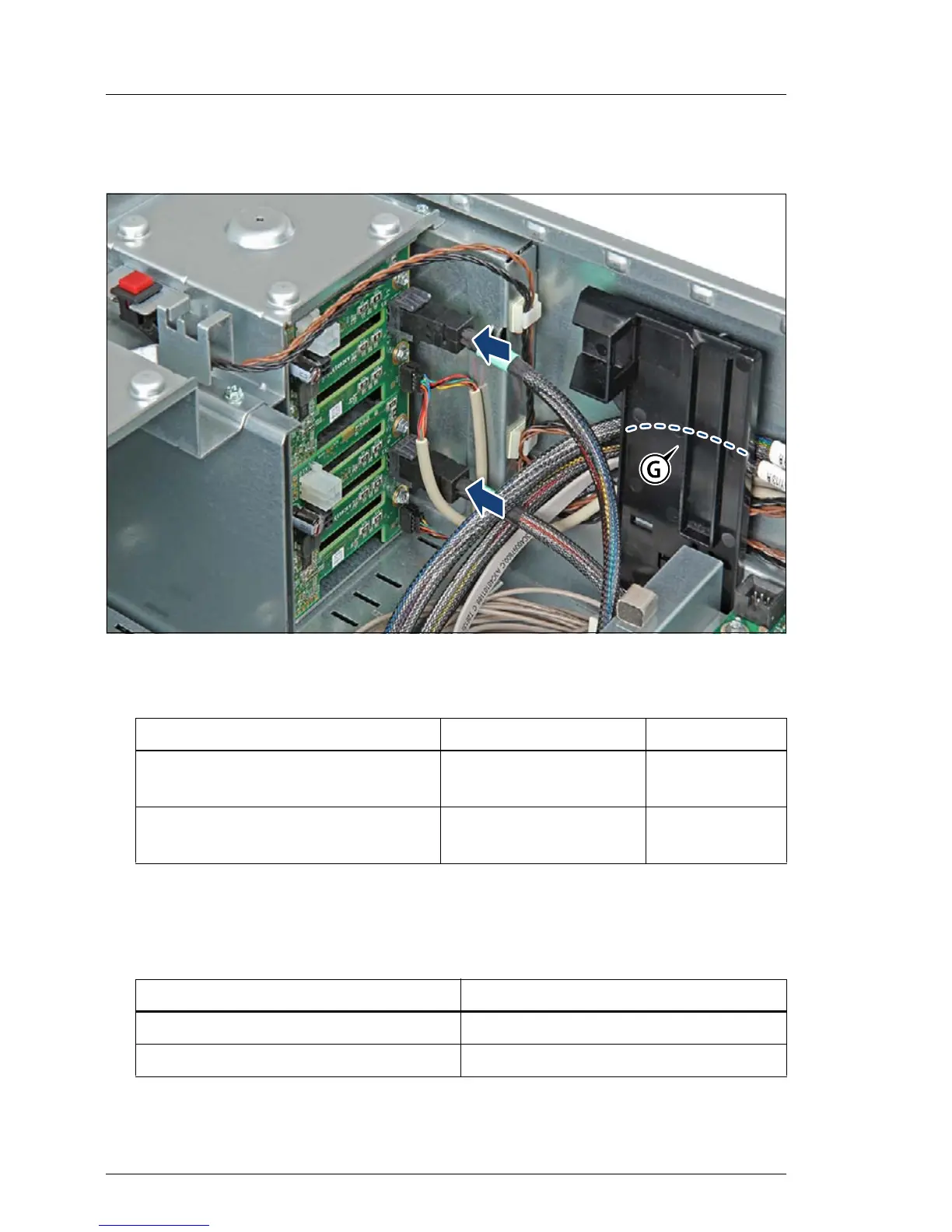

Figure 93: SAS 3.0 backplane cabling
Ê Connect the SAS 3.0 cables to connector X5 on each SAS 3.0 backplane:
Ê Run the SAS cables through the cable guide (G) as shown.
Ê Connect the SAS cables to the SAS RAID controller in PCI slot 10:
SAS configuration required SAS cable Cabling plan
SAS 2.0 RAID controllers
D2616 and D2607
SAS 2.0 / 3.0 cable
T26139-Y4040-V14
16.2.13
SAS 3.0 RAID controller
D3216 (PRAID EP400i / EP420i)
SAS 3.0 cable
T26139-Y4040-V8
16.2.14
SAS backplane SAS controller connector
SAS 3.0 backplane 1 Connector MLC 1
SAS 3.0 backplane 2 Connector MLC 2
