Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 619
Front panel and external connectors

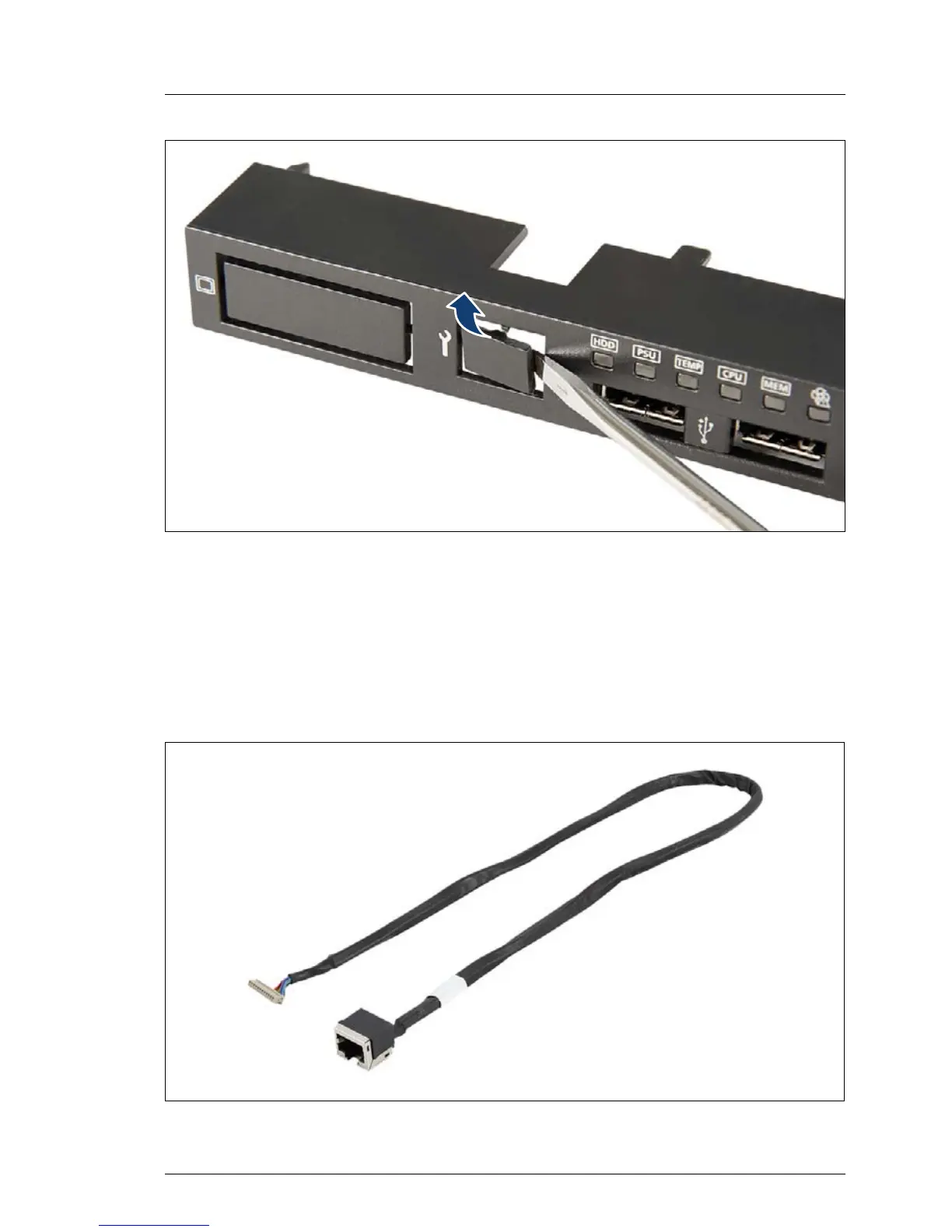

Figure 484: Breaking out the front LAN cover plate
Ê Break out the front LAN cover plate on the front panel cover.
I Please note that once removed, the front LAN cover plate cannot be
refitted.
13.2.1.4 Installing the front LAN connector
Figure 485: Front LAN cable T26139-Y4025-V1
