Ê "Opening the server" on page 68
I The front cover only needs to be removed in order to install
accessible drive dummy covers (see section "Installing accessible
drive dummy covers" on page 548). If the accessible drive is replaced
after being removed, leave the front cover installed.
Ê "Removing the system air duct" on page 81.
Ê "Removing the system fan holder" on page 330.
12.3.2 Removing an accessible drive
Ê Remove all cables from the accessible drive.
Ê Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 91.

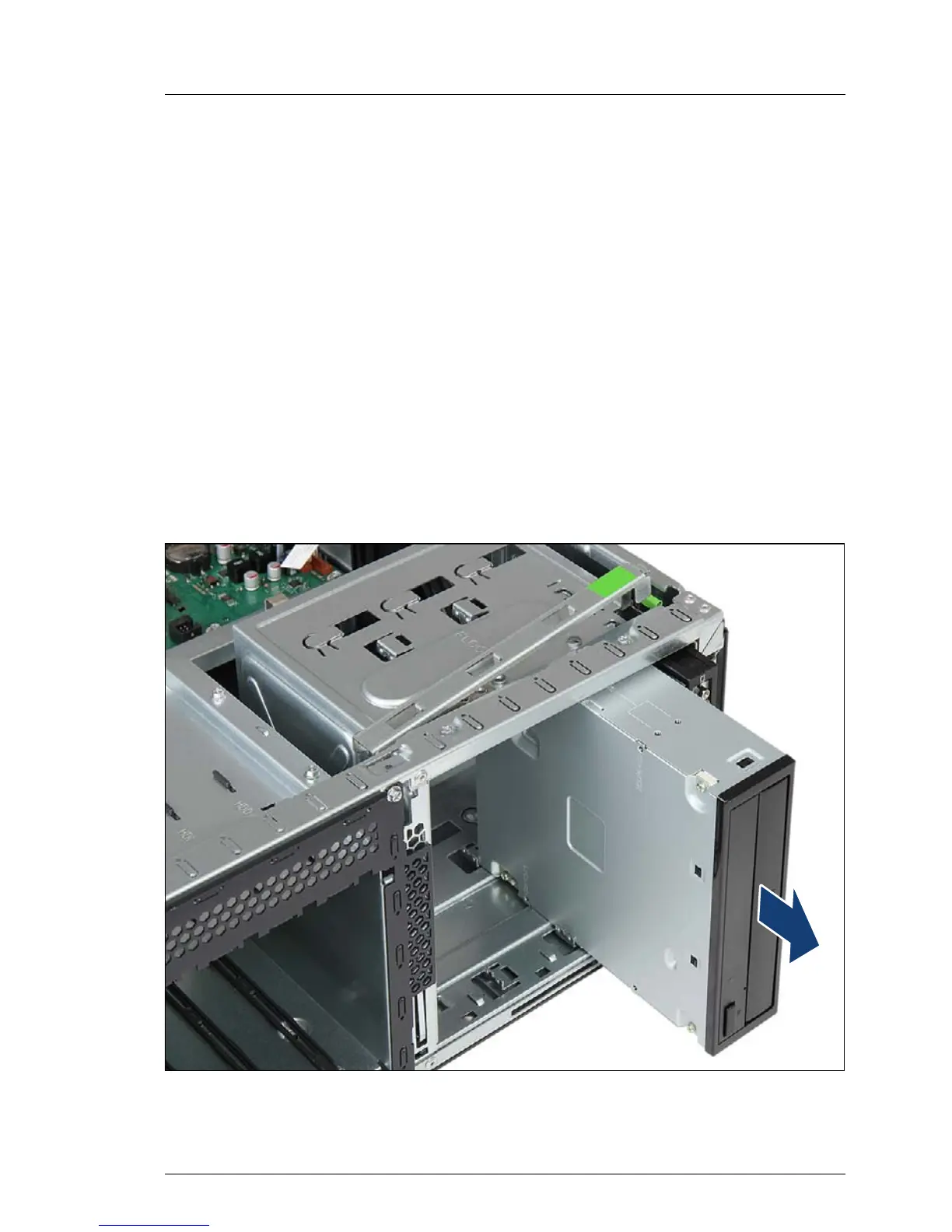

Figure 418: Removing the accessible drive
