Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 457
Expansion cards and backup units
9.6.6.3 Removing the BBU from the BBU holder

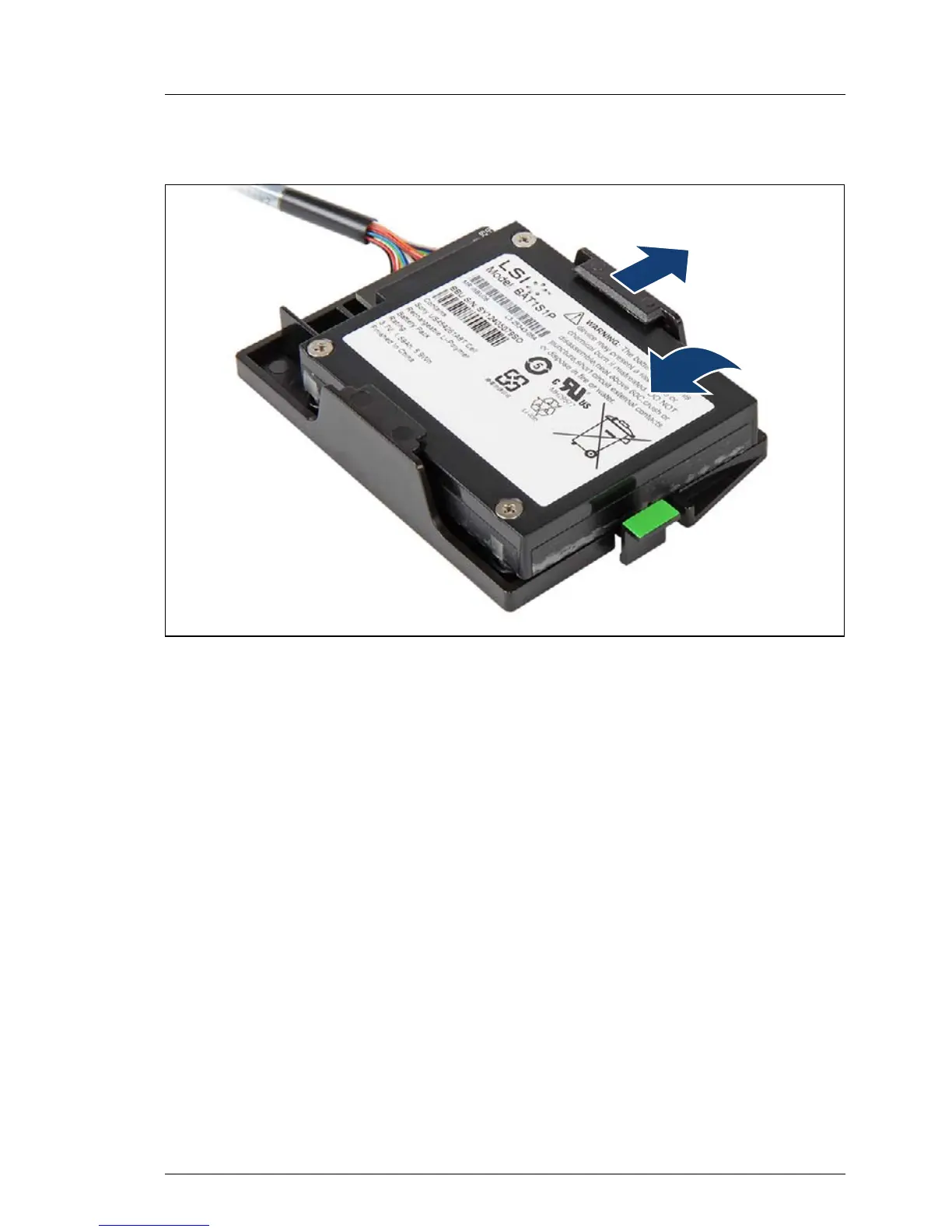

Figure 350: Removing the BBU from the BBU holder (A)
Ê Press out on the right retaining bracket on the BBU holder to disengage the
locking mechanism while pulling up on the BBU.
