Fujitsu PRIMERGY RX350 S8 User Manual

752 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Cabling
16.2.16 SAS 3.0 / 2.0 cabling with 16x 2.5-inch
HDDs / SSDs and two SAS controllers

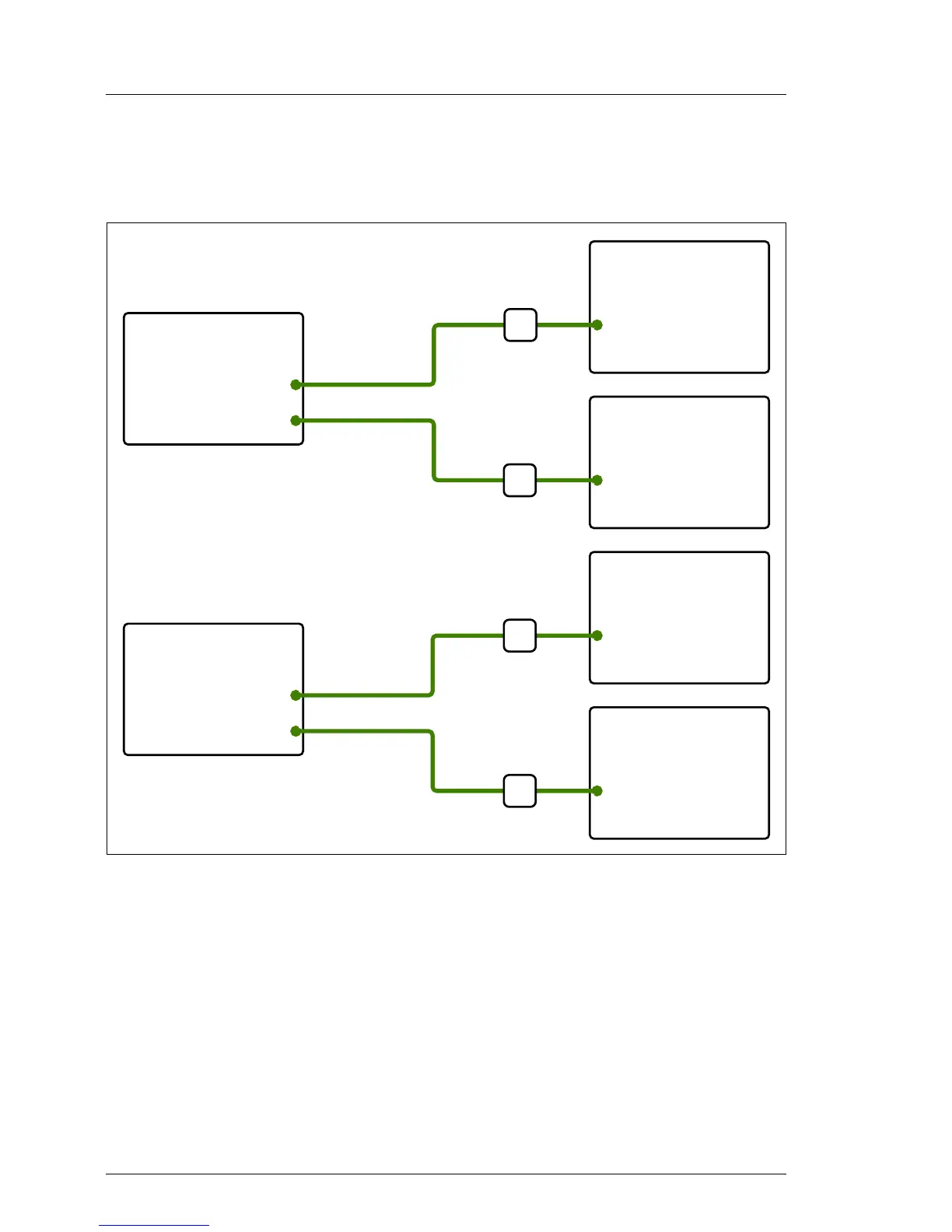

Figure 592: SAS cabling: 16x 2.5" HDDs / SSDs, 1x SAS 3.0 / 1x SAS 2.0 controller
SAS 3.0 Controller 1
(PCI Slot 10)
MLC 1
MLC 2
4x 2.5-inch HDD
SAS 3.0 Backplane 2
X5
4x 2.5-inch HDD
SAS 3.0 Backplane 1
X5
27
27
SAS 2.0 Controller 2
(PCI Slot 3)
MLC 1
MLC 2
4x 2.5-inch HDD
SAS 2.0 Backplane 4
X1
4x 2.5-inch HDD
SAS 2.0 Backplane 3
X1
18
18
