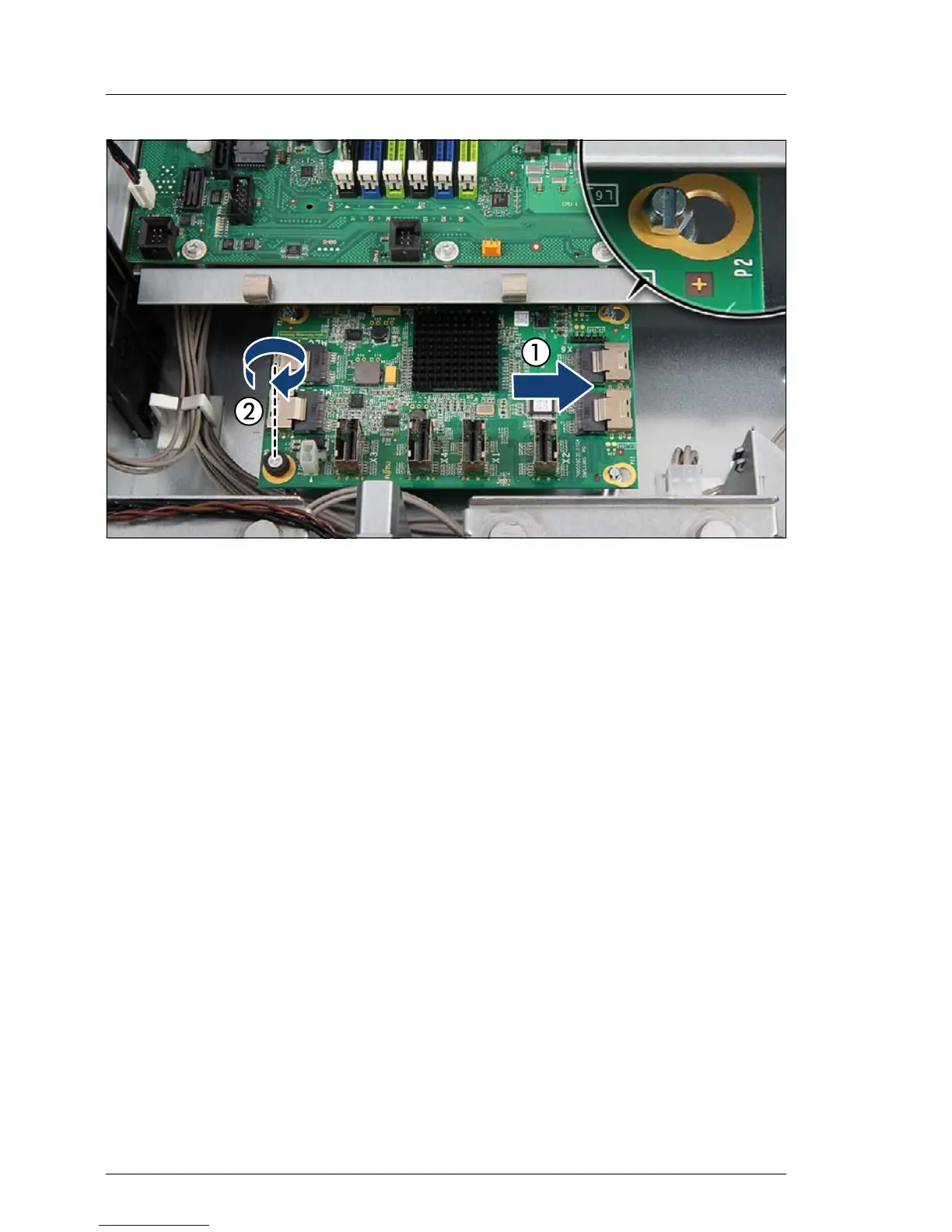

Figure 211: Installing the SAS expander board (B)
Ê Slide the expander board to the right as far as it will go (1).
The shoulder screw caps on the expander board spacer bolts will lock in the
narrow ends of the keyhole slots on the spacer board (see close-up).
Ê Secure the SAS expander board in the chassis with the captive knurled
thumb screw on the board (2).
Ê Change SAS cabling according to the new server configuration as described
in sections "2.5-inch HDD / SSD configurations" on page 185 and "3.5-inch
HDD configurations" on page 241.
7.5.1.4 Concluding steps
Ê "Installing the system fan holder" on page 331
Ê "Installing the system air duct" on page 83
Ê "Closing the server" on page 98
Ê When working on a rack-mounted server:
"Mounting the server in the rack" on page 115
Ê "Connecting the server to the mains" on page 118
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task: "Resuming BitLocker functionality" on page 152
