TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 575
Accessible drives
12.6.1.3 Installing the LSD module into the HDD extension box

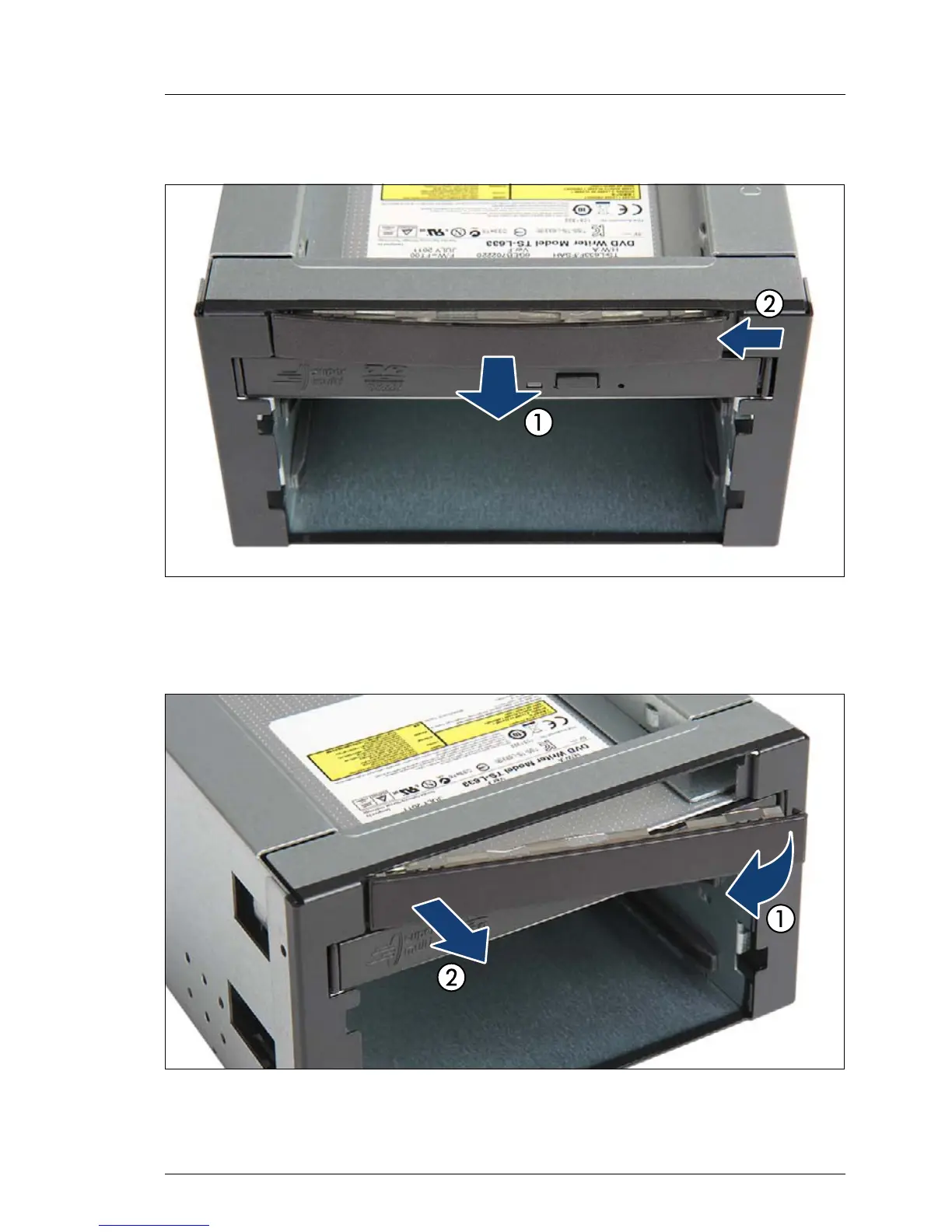

Figure 443: Removing the LSD dummy cover plate (A)
Ê Carefully bend out the LSD dummy cover plat (1) and disengage its right
edge (2).
Figure 444: Removing the LSD dummy cover plate (B)
Ê Fold out (1) and remove (2) the LSD cover plate.
