Accessible drives
Ê Connect cables to the slimline ODD:

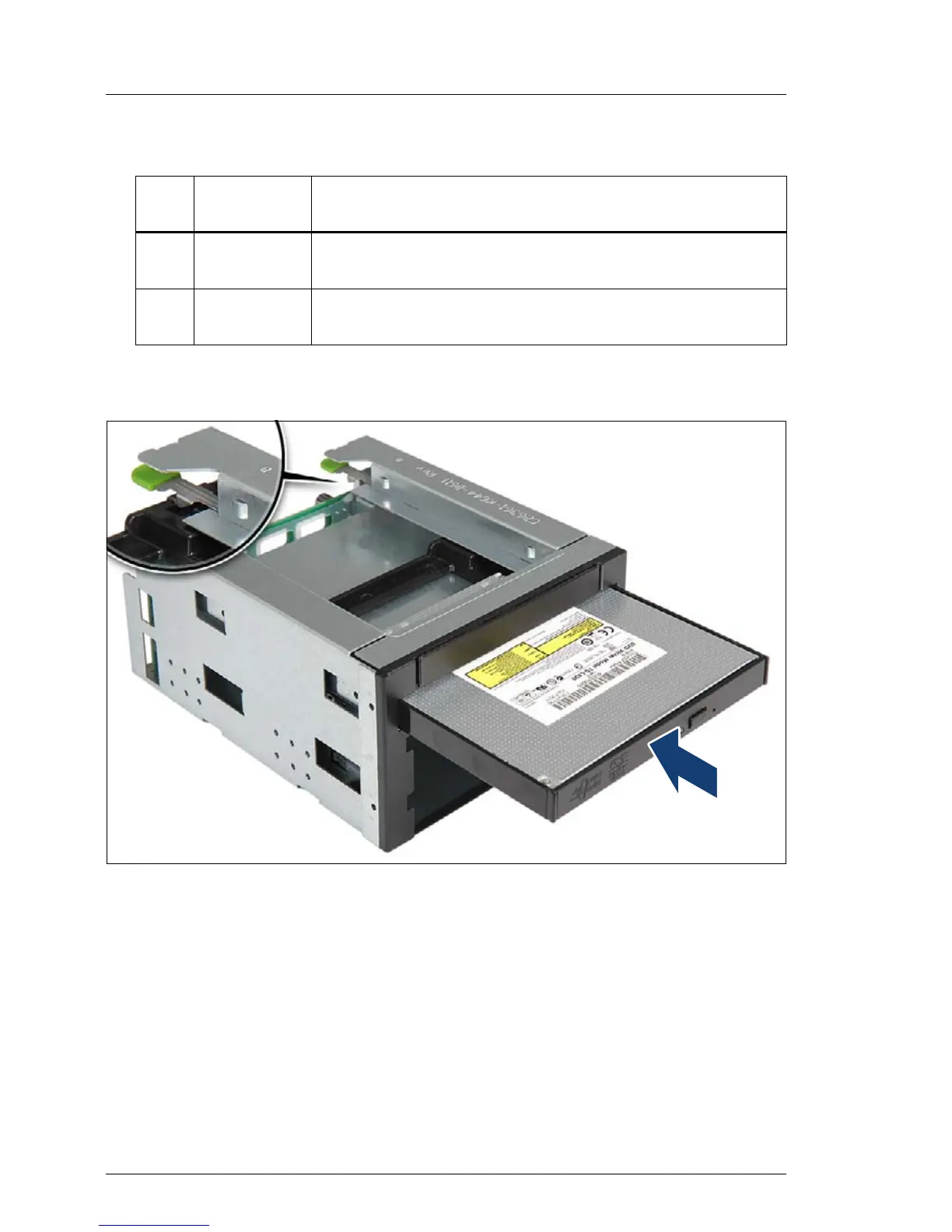

Figure 442: Mounting the slimline ODD module in the HDD expansion box
Ê Insert the slimline ODD module into the HDD extension box and push back
until the locking tab (see close-up) engages.
#
Cabling
list no.
1
1
The cabling list numbers refers to section "List of used cables" on page 736.
Cable
1 8A / 8B
Slimline ODD SATA power cable
(T26139-Y3986-V302 / T26139-Y3986-V305)
2 20
SATA cable
(T26139-Y3958-V205)
