9.2.2.2 Removing an expansion card

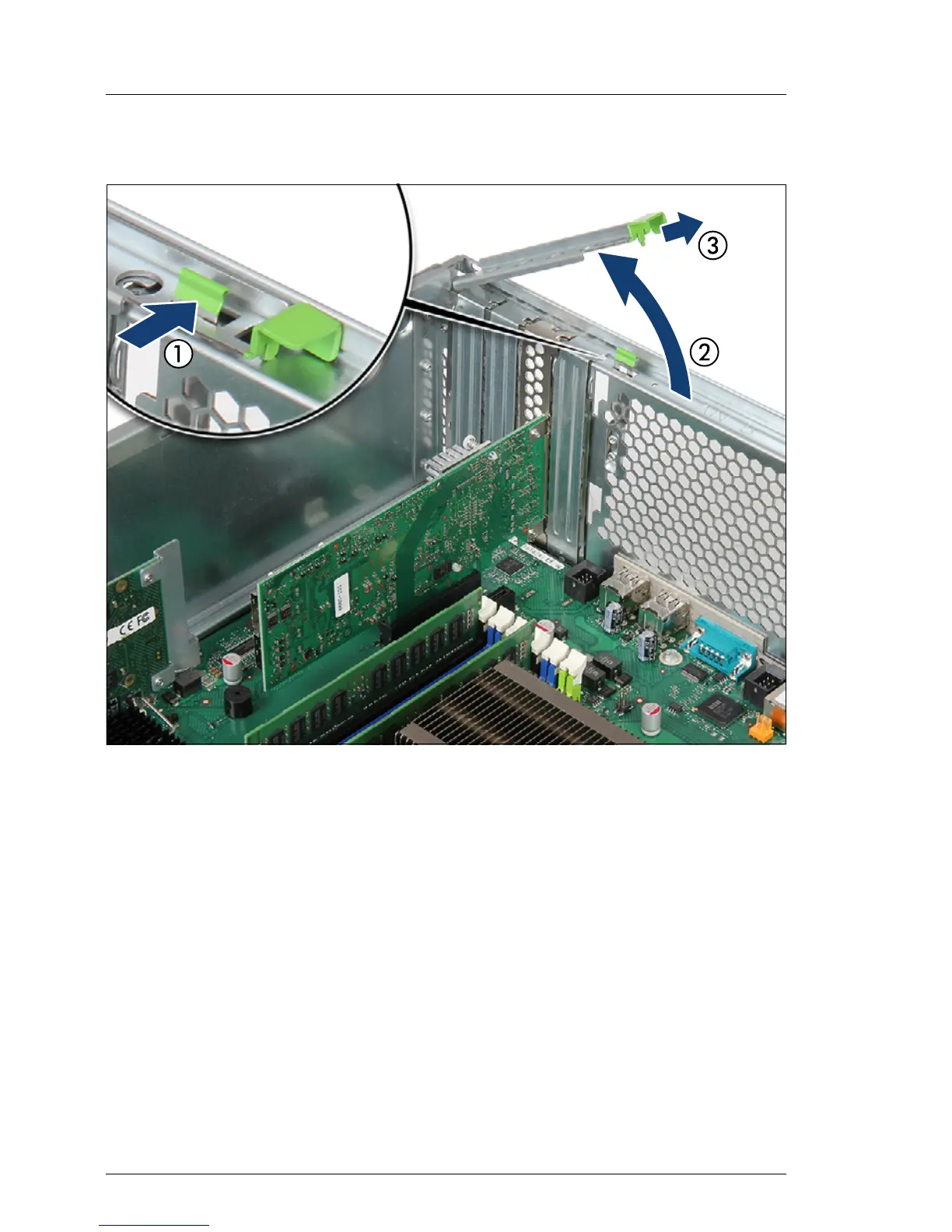

Figure 244: Removing an expansion card (A)
Ê If applicable, remove SFP+ transceiver modules from the expansion card.
Ê Press out on the locking latch to disengage the PCI slot bracket locking bar
(1, see close-up).
Ê Fold up (2) and remove (3) the PCI slot bracket locking bar.
