7.2.9.6 Mounting the 2.5-inch HDD bay top cover
I The 2.5-inch HDD front panel does not need to be removed in order to
replace a 2.5-inch HDD SAS backplane. In the figures, the front panel
has been removed for illustration purposes only.

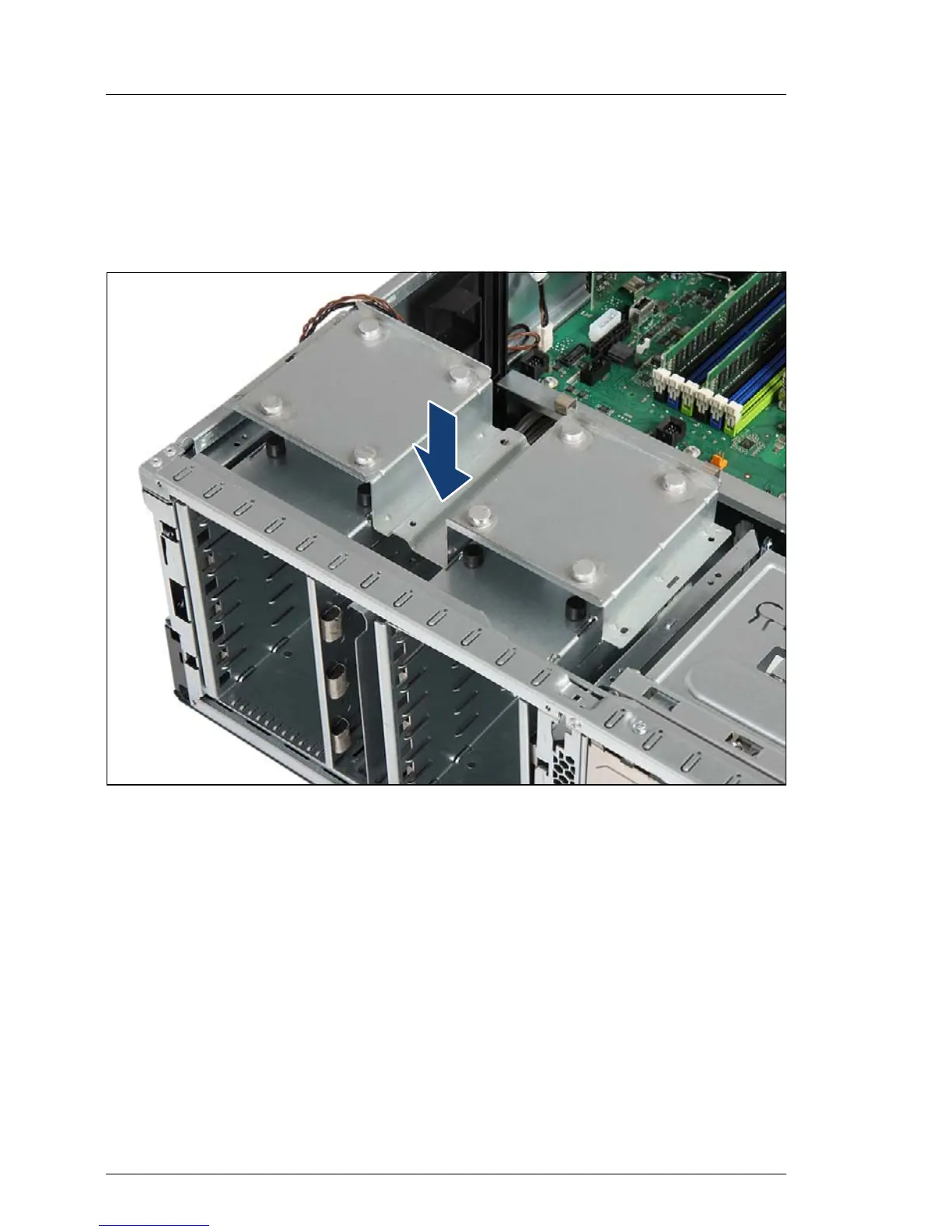

Figure 128: Mounting the 2.5-inch HDD bay top cover (A)
Ê Lower the 2.5-inch HDD bay top cover onto the HDD installation bays.
Ê Ensure that the four rubber bolts on top of the cage properly engage with the
corresponding dents in the HDD bay top cover.
