Ê When working on a rack-mounted server:
"Extending / removing the server from the rack" on page 64
Ê "Opening the server" on page 68
Ê "Removing the system air duct" on page 81
Ê "Removing the system fan holder" on page 330
7.3.10.2 Removing the 3.5-inch HDD bay top cover

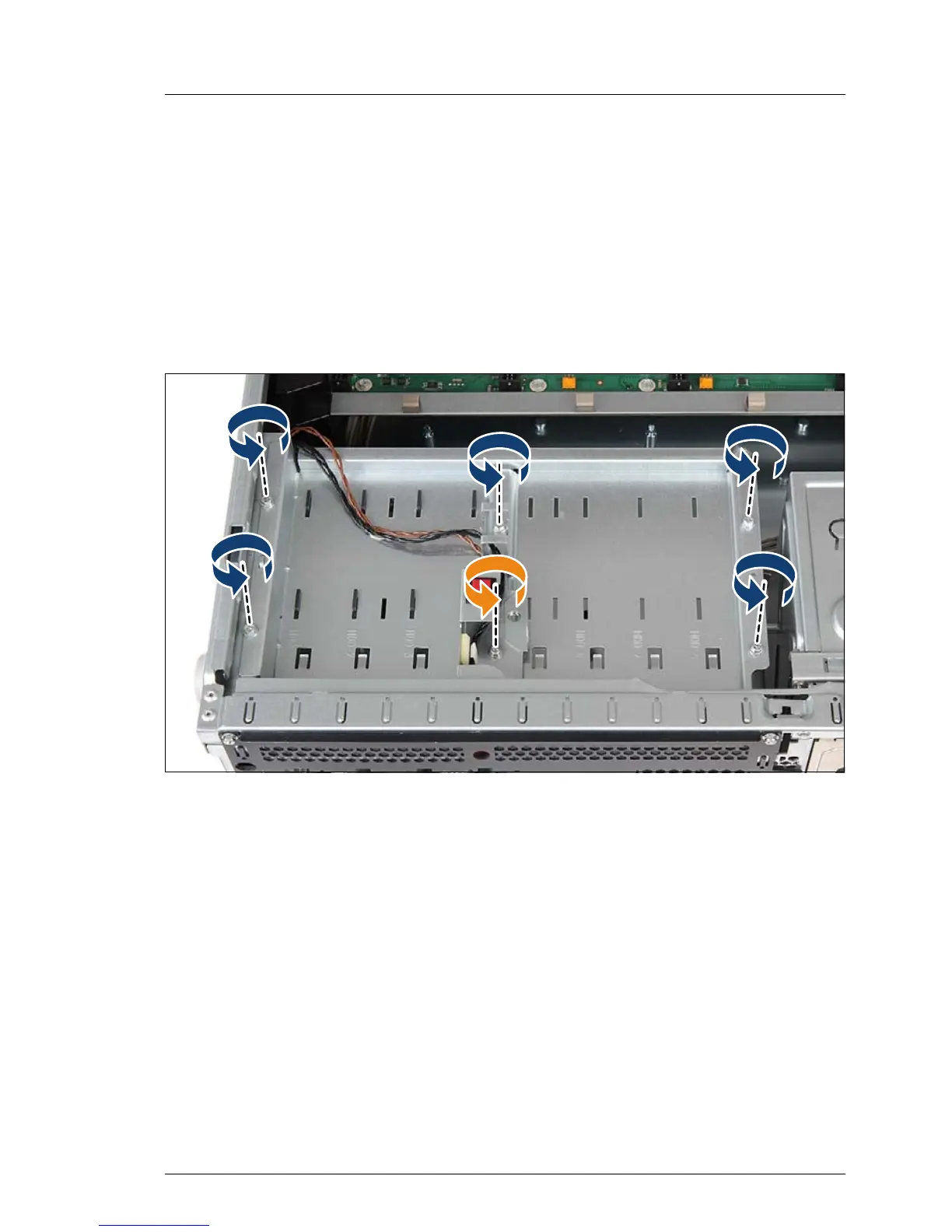

Figure 178: Removing the 3.5-inch HDD bay top cover (A)
Ê Remove five screws from the 3.5-inch HDD bay top cover (see blue arrows).
Ê Remove one screw from the intrusion switch holder (see orange arrow).
